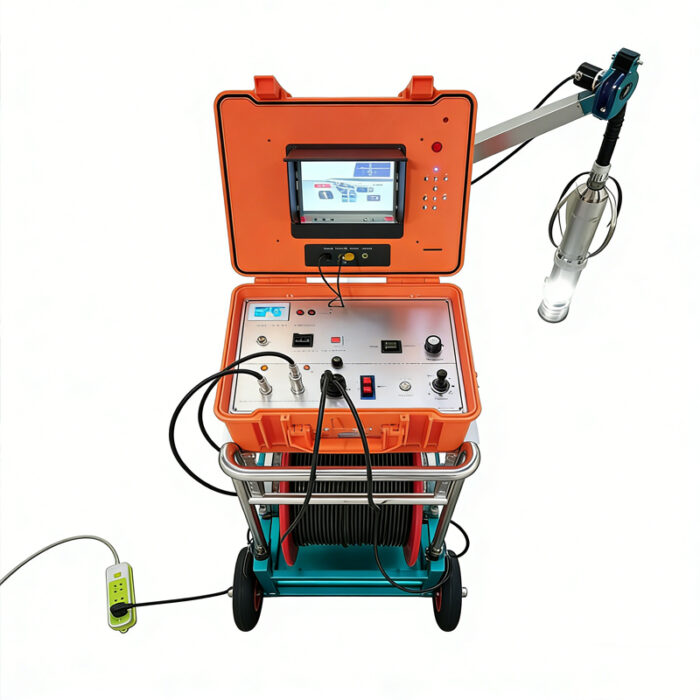

BDO-300M Portable Video Waterproof Dual-rotating Underground Drilling Detection Camera
Borehole camera is a great combination of modern technology and affordable price. It is well suited for inspecting various
reservoirs, water wells, deep sea, borehole, shafts, pipes, tanks and other objects from the top down. It is equipped witha Ø90mm PT camera head enabling operators to receive a complete detailed image of the inspection area, the camerahead supports 360 pan rotation and 180 tilt rotation. The camera is equipped with CMOS sensors and 28pcs high-outputlong-lasting LED light allowing for capturing bright and detailed images even in poor lighting environments.The downhole camera head housing is waterproof and withstand pressure up to 200 bars. The Ø90mm PT camera head is with focus adjustment and temperature measurement function(Option).
The Downhole Camera features a compact control unit with a high-resolution 12” LED display.The inspection process can be viewed on the display right on site as video files. All data can be saved on 16G SD card(Maximum 512G).The user-friendly interface offers various operation features, such as, the depth sensor, the winch operating knob, rotation control and so on.
The system works with Ø8.2mm modified polypropylene cables(6 wires inside, which can bear 280KG) of differentlengths (from 100m to 800m) that can be securely coiled on an electric winch.The cable will be arranged in order automatically as the electric winch with auto cable function.The electric winch allowing for winding the cable up and down with different speeds, and the winch also can control by hand.Besides inspection findings, users can view depth, the depth accuracy reach to 0.05m and it supports depth reset.
The downhole camera works on a conventional AC220V(Default) / DC12V(optional) power supply,or we can make it work with AC110V by a AC110V to AC220C converter. -

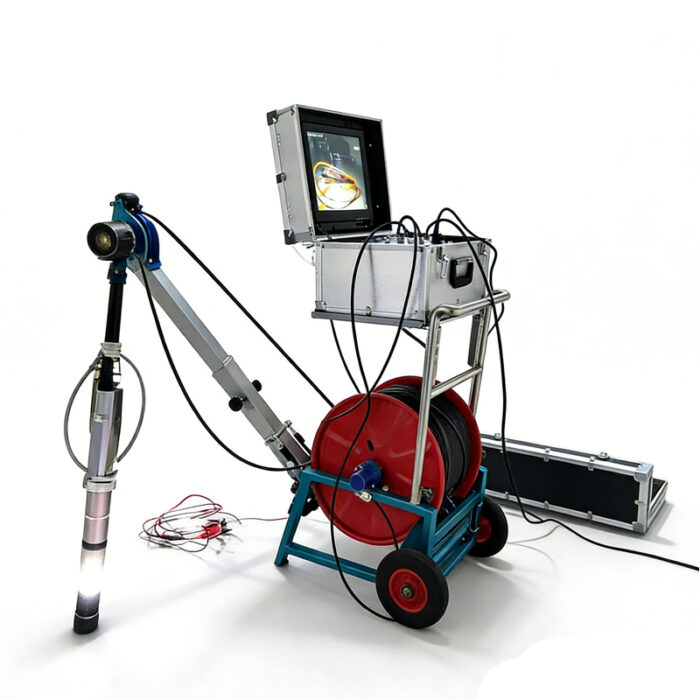

BDW-200M Deep Well Borehole Inspection Camera Underground Well Equipment Quality Factory Direct Water Scanner
Specification1. Main Control System
* ABS engineering plastic * Voltage input: 220V(12V is optional) * Depth, time will show on monitor * All controls on control box
* Monitor: 10”(7″ and 12” is optional) high brightness LED monitor. *12V power input is optional2. Electric and Manual Combined Detachable Winch
* Manual and Automatic Electric Combined Winch* Manually control lifting speed on control box.* Stainless steel tray, easy to transport.* Depth Counting Downhole Pulley* Pulley Support Rod * depth accurate to 0.005 meters3. Single Rotary Probe(different diameter for choice)
* Camera size: Φ90mm/φ75mm/φ42cm, length: 30cm-34cm* Camera material: stainless steel casing * Camera window: explosion-proof
optical acrylic glass or explosion-proof glass window* Camera pixel: CCD camera, 1200TVL HD low illumination* pan 360°, tilt 180° tilting, dimming and focusing* Brightness focal length adjustment * pressure 20MPA4. Dual camera rotation probe (different diameter for choice) 41mm, 50mm, 75mm dual probe* CCD camera, 1200TVL HD low illumination* side 360° infinite rotate.* Light: Front 8 or 9 highlight patches lamp beads, rear 8 or 24 LED strong light source bead.* Brightness Adjustment: control box button can adjust brightness,
5 level dimming.* Focal Length: 75mm probe facus is adjustable.* Compression Resistance: 20MPA, max. pressure depth to 2000m.
