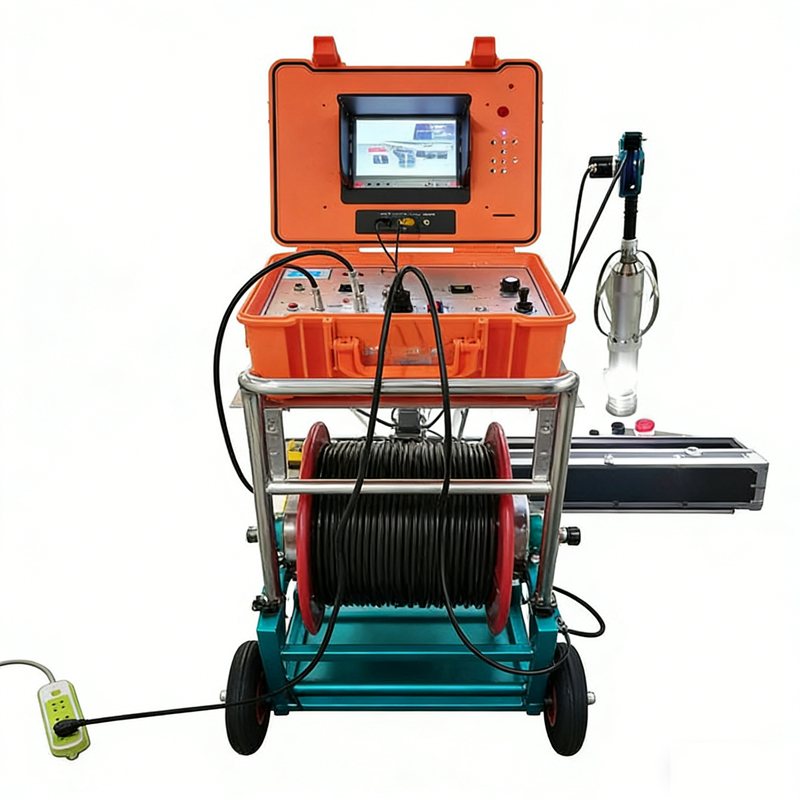

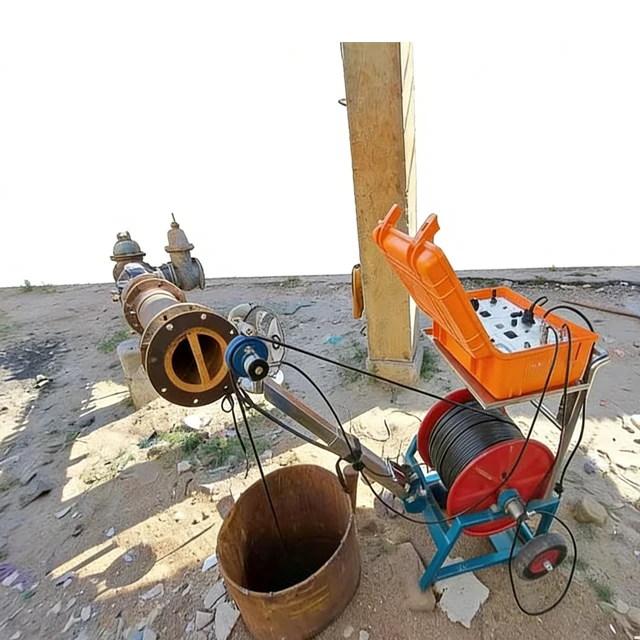

Description
Feature
1. 0-800m inspection depth, pressure bear 20MPA, max. to 2000m.
2. Dual rotary, single rotary and panoramic camera for choice.
3. LED adjustable, zooming adjustable.
4. 7″, 10″ LED HD monitor, touch screen.
5. Electric and Manual integrated winch.
6. With video recording, meter counting functions.
1. 0-800m inspection depth, pressure bear 20MPA, max. to 2000m.
2. Dual rotary, single rotary and panoramic camera for choice.
3. LED adjustable, zooming adjustable.
4. 7″, 10″ LED HD monitor, touch screen.
5. Electric and Manual integrated winch.
6. With video recording, meter counting functions.
Specification

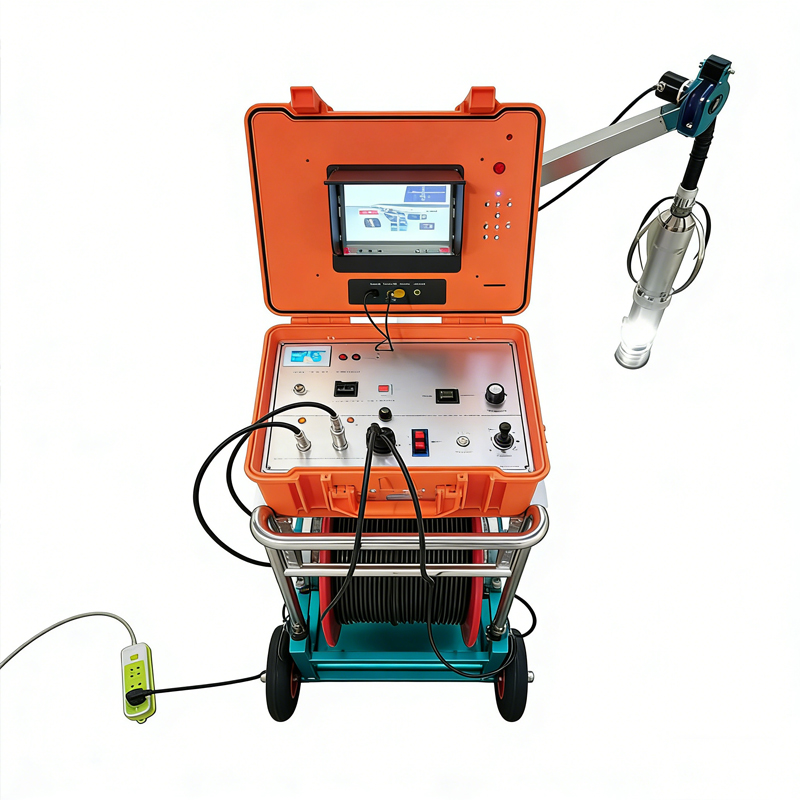

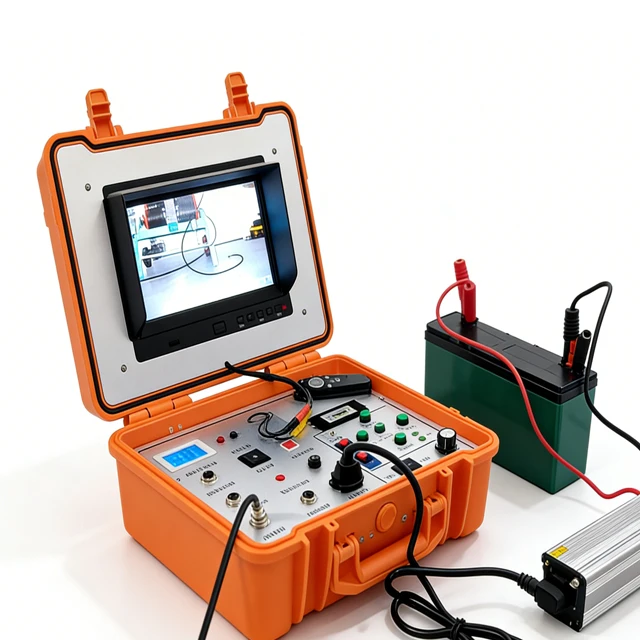

1. Main Control System
* ABS engineering plastic * Voltage input: 220V(12V is optional) * Depth, time will show on monitor * All controls on control box
* Monitor: 10”(7″ and 12” is optional) high brightness LED monitor. *12V power input is optional
* ABS engineering plastic * Voltage input: 220V(12V is optional) * Depth, time will show on monitor * All controls on control box
* Monitor: 10”(7″ and 12” is optional) high brightness LED monitor. *12V power input is optional
|

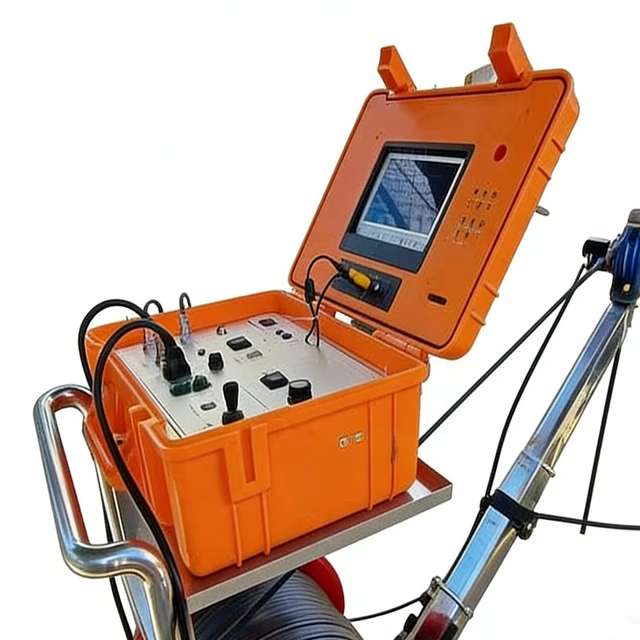

Control Box
|
ABS engineering plastic control box, 220V (12V is optional) input
|
|
Winch
|
Electric and manual combined winch, detachable
|
|
Monitor
|
7” (10” is optional) high-brightness LED monitor
|
|
Control System
|
Touch screen all-in-one controls every function(camera rotation, light source and focus adjustment),live video preview, capture
images while recording video, direct typing function, U disk and TF card video storage. Manual control cable lifting and speed. |
|
Single Rotary Probe
|
Φ90mm, φ75mm, φ40mm is optional. The camera rotates 360 degrees clockwise and infinitely counterclockwise, tilting 180 degrees
flip. Brightness focal length is adjustable. Manually control the direction and angle of the downhole camera, the brightness of the light source and focal length for clear video images, 5-level dimming. φ40cm and φ75mm probe are with front 6/8 highlight patch beads, φ90mm probe is with front 12 highlight patch beads, rear 16 LED strong light bulb bezel focal |
|
Dual Rotary Probe
|
Φ75mm, φ50mm, φ41mm is optional. Front rear camera, rear side wall camera 360 degree clockwise rotation and counterclockwise
infinite rotation. Brightness of the light source can be adjusted for both front and rear lights, five-level dimming. φ75mm side wall camera can adjust the focus. |
|
Depth Counter
|
Accurate to 0.005m
|
|
Logging Cable
|
6-core Bearing, 800m
|
|
Centralizer
|
High Elasticity Stainless Steel
|
|
12V Input(Optional)
|
Battery power supply function (available within 600 meters)
|
|

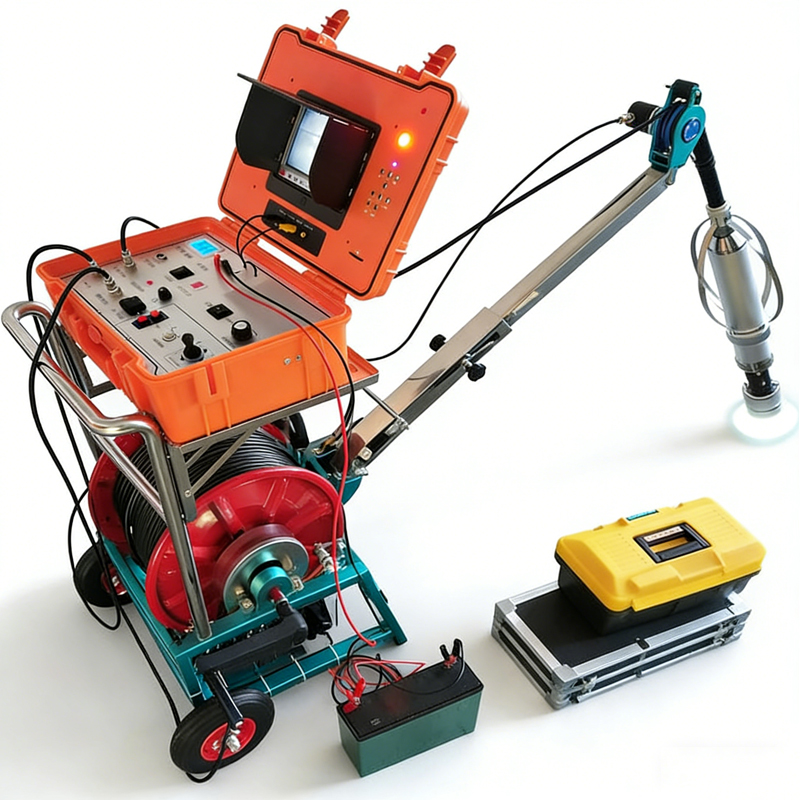

Tool Box
|
Camera probe and connecting cable and accessories
|

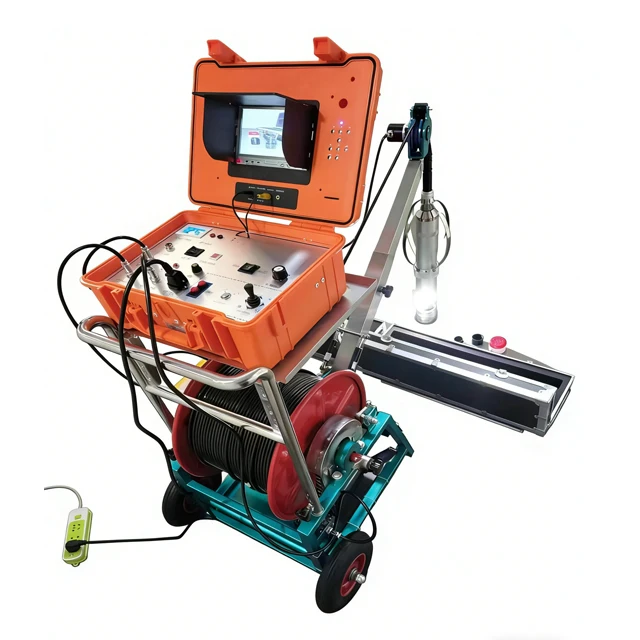

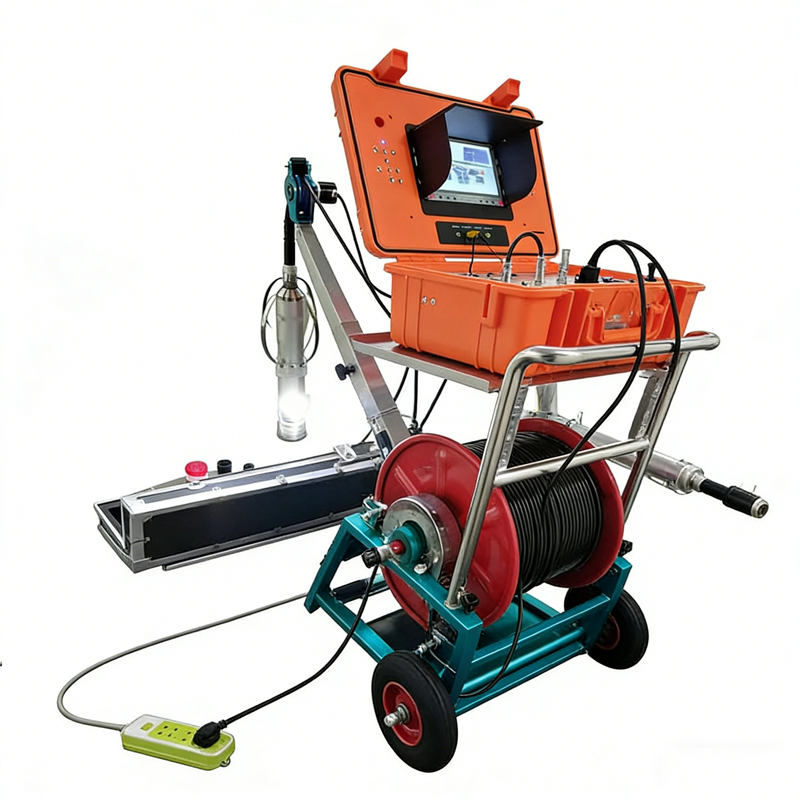

2. Electric and Manual Combined Detachable Winch
* Manual and Automatic Electric Combined Winch * Manually control lifting speed on control box. * Stainless steel tray, easy to
transport. * Depth Counting Downhole Pulley * Pulley Support Rod * depth accurate to 0.005 meters
* Manual and Automatic Electric Combined Winch * Manually control lifting speed on control box. * Stainless steel tray, easy to
transport. * Depth Counting Downhole Pulley * Pulley Support Rod * depth accurate to 0.005 meters
3. Single Rotary Probe(different diameter for choice)
* Camera size: Φ90mm/φ75mm/φ42cm, length: 30cm-34cm * Camera material: stainless steel casing * Camera window: explosion-proof
optical acrylic glass or explosion-proof glass window * Camera pixel: CCD camera, 1200TVL HD low illumination * pan 360°, tilt
180° tilting, dimming and focusing * Brightness focal length adjustment * pressure 20MPA
* Camera size: Φ90mm/φ75mm/φ42cm, length: 30cm-34cm * Camera material: stainless steel casing * Camera window: explosion-proof
optical acrylic glass or explosion-proof glass window * Camera pixel: CCD camera, 1200TVL HD low illumination * pan 360°, tilt
180° tilting, dimming and focusing * Brightness focal length adjustment * pressure 20MPA
4. Dual camera rotation probe (different diameter for choice)
41mm, 50mm, 75mm dual probe * CCD camera, 1200TVL HD low illumination * side 360° infinite rotate. * Light: Front 8 or 9 highlight
patches lamp beads, rear 8 or 24 LED strong light source bead. * Brightness Adjustment: control box button can adjust brightness,
5 level dimming. * Focal Length: 75mm probe facus is adjustable. * Compression Resistance: 20MPA, max. pressure depth to 2000m.
41mm, 50mm, 75mm dual probe * CCD camera, 1200TVL HD low illumination * side 360° infinite rotate. * Light: Front 8 or 9 highlight
patches lamp beads, rear 8 or 24 LED strong light source bead. * Brightness Adjustment: control box button can adjust brightness,
5 level dimming. * Focal Length: 75mm probe facus is adjustable. * Compression Resistance: 20MPA, max. pressure depth to 2000m.
|
Features
|
* Ø90mm PT camera head, pan 360 degree rotation, tilt 180degree rotation
* front LED lights & camera’s focus are adjustable * Dia.90mm stainless steel CMOS camera, 1200TVL * Waterproof ,up to 200 Bars(20 MPA)* Temperature measurement function(Option) * 100-800m polypropylene cable with electric winch* The cable will be arranged in order automatically when the winch take it back as the winch is with auto cable function * Electric winch winding speed adjustable * Depth counter, the depth shows on the display, the depth accuracy: 0.05m and it supports depth reset * 12inch LCD display * DVR control box with video recording function * 16G SD card(max 512G) to storage video * Power supply: AC220V Optional Functions: |
|
Ø90mm PT Camera Head
|
* Ø90mm PT camera head, pan 360 degree rotation, tilt 180degree rotation
* Front LED lights & camera’s focus are adjustable * CMOS camera, 1200TVL * Temperature measurement function(Option) * Pan 360° rotate endless, tilt 180° * Waterproof, Operating depth 200 bars (20 MPA) * Camera Material: 304 stainless steel * Camera Lens Material: Explosion-proof optical glass * Sensor resolution: PAL 720H×576V NTSC 720H×480V * Camera LED: front 12 pcs, rear 16pcs high bright LEDs, the front LED lights is adjustable, eight-level dimming |
|
Ø 75mm PT Camera Head (optional)
|
* Ø75mm PT camera head, pan 360 degree rotation, tilt 180degree rotation
* LED & camera’s focus are adjustable * CMOS camera, 1200TVL * Pan 360° rotate endless, tilt 180° * Waterproof, Operating depth 200 bars (20 MPA) * Camera Material: 304 stainless steel * Camera Lens Material: Explosion-proof optical glass * Sensor resolution: PAL 720H×576V; NTSC 720H×480V * Camera LED: 12 pcs high bright LED, eight-leveling dimming |
|
Ø75mm/ Ø55mm/Ø40mm down hole camera (Optional)
|
* Ø75mm/Ø55mm/Ø40mm down hole camera head
* CMOS camera, 1200TVL * Camera: Split galvanized iron probe or stainless steel, easy to dismantle * Camera lens: wear anti-reflective resin sheet * Waterproof, Operating depth 200 bars (20 MPA) * Lens Angle view: 130 degree wide-angle * Camera Light: 8 – 12 high brightness LED cold lights * Sensor resolution: PAL 720H×576V NTSC 720H×480V |
|

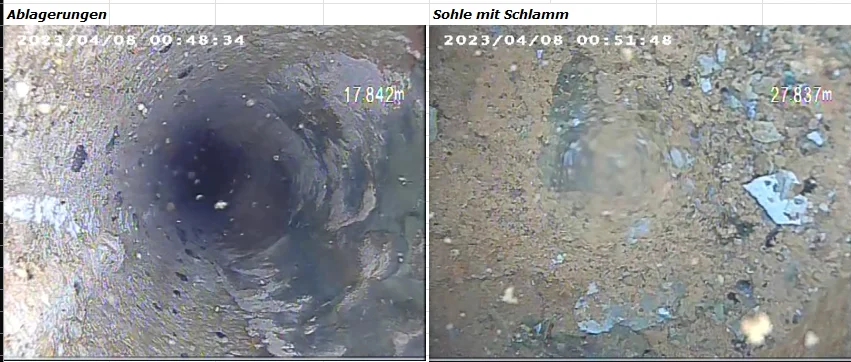

The Display
|
*12″ LED display, 291*251*48mm
* Display model 4:3 * Contrast Ratio: 400: 1 * Brightness: 450cd / m * Resolution: 1024 × 768 * Power: DC 12V * Color System: PAL / NTSC / SECAM |
|

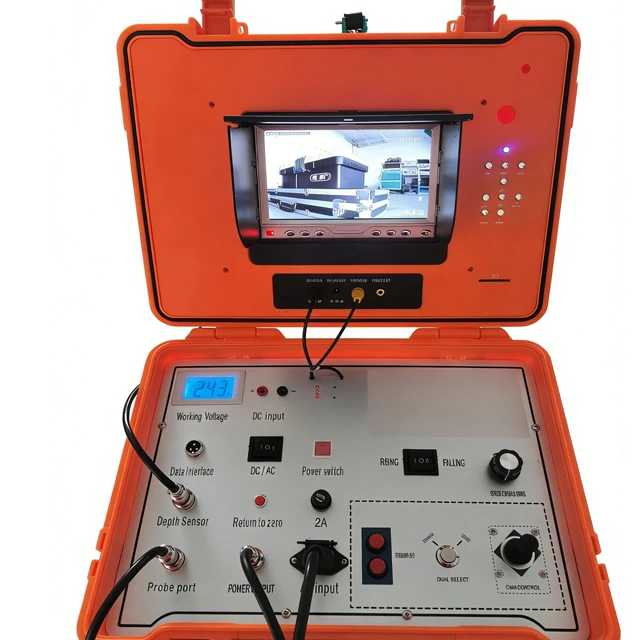

Control Panel
|
* Input voltage: 220V
* Depth Interface: Connect depth sensor * Probe Interface: Connect the probe, transmit video and power * Data Interface: Write their own wells pound, self-calibration depth * Winch operating knob(adjusting speed, cable up and down, brake) * Camera rotation control button * LED brightness control button * HD DVR Video record * Video storage Medium: 16G SD card(Max 512G) * the depth reset |
|

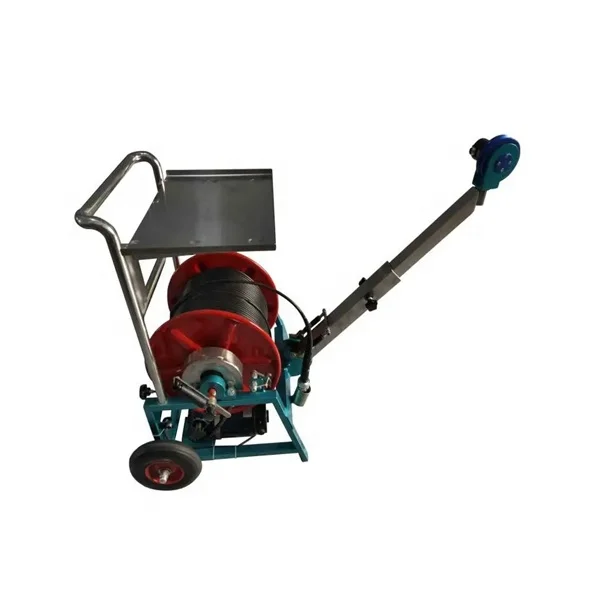

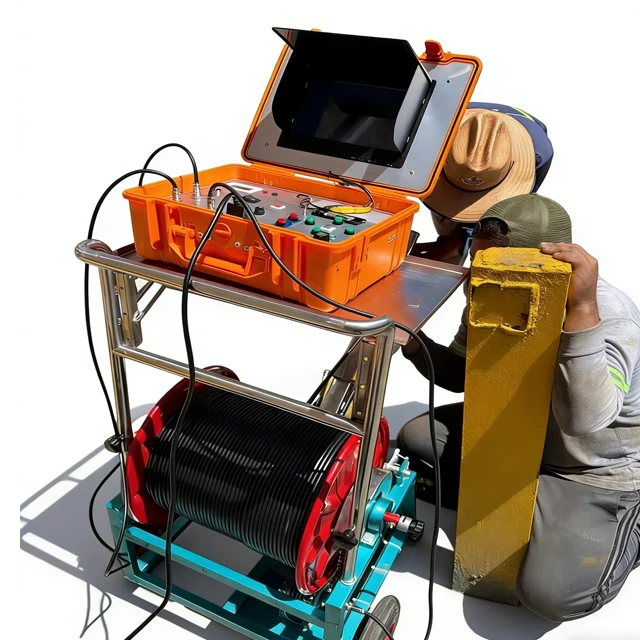

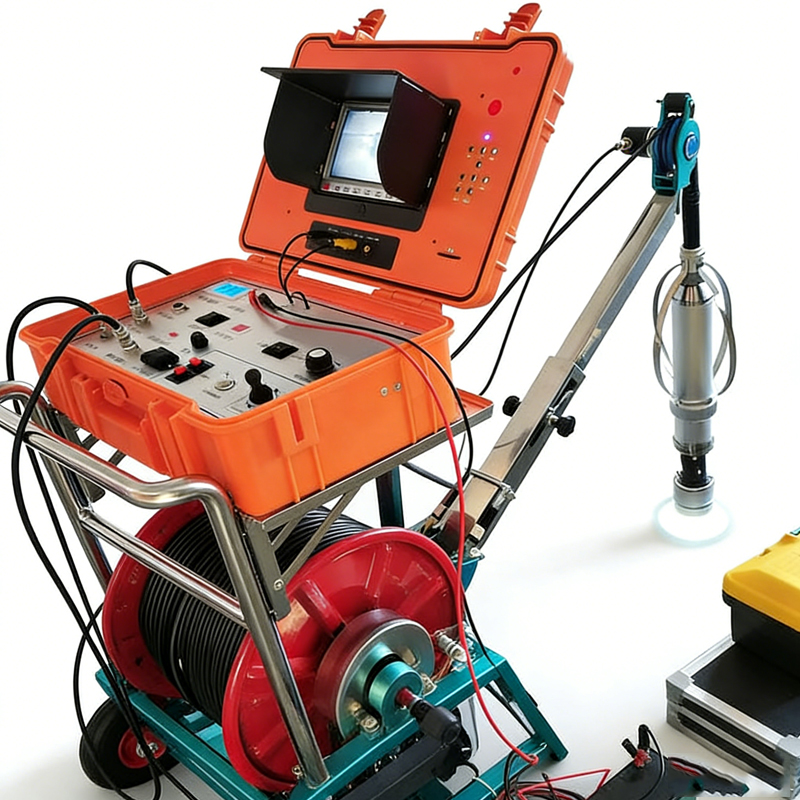

Electric Winch
|
* Electric & Manual winch
* Winding speed:0~20m/min * Cable speed adjustable * Φ8.2mm polypropylene auto cable (100m-800m optional, auto cable function, the cable will be arranged in order automatically when the winch take it back) * Power supply: AC220V * Master box tray: stainless steel tray, removable and easy to transport * Pulley: Pulley is with depth sensor, the depth sensor can be used when it is connected with the main control box * Pulley support rods: retractable pulley rod, removable, the winch is equipped a hydraulic rod to prevent the strut shaking when working |
|
Other Accessories
|
One Manual, a set of connecting cables, 5 pcs seals, a set of wearing parts
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
