Description
Feature
1. 0-800m inspection depth, pressure bear 20MPA, max. to 2000m.
2. Dual rotary, single rotary and panoramic camera for choice.
3. LED adjustable, zooming adjustable.
4. 7″, 10″ LED HD monitor, touch screen.
5. Electric and Manual integrated winch.
6. With video recording, meter counting functions.
1. 0-800m inspection depth, pressure bear 20MPA, max. to 2000m.
2. Dual rotary, single rotary and panoramic camera for choice.
3. LED adjustable, zooming adjustable.
4. 7″, 10″ LED HD monitor, touch screen.
5. Electric and Manual integrated winch.
6. With video recording, meter counting functions.
|

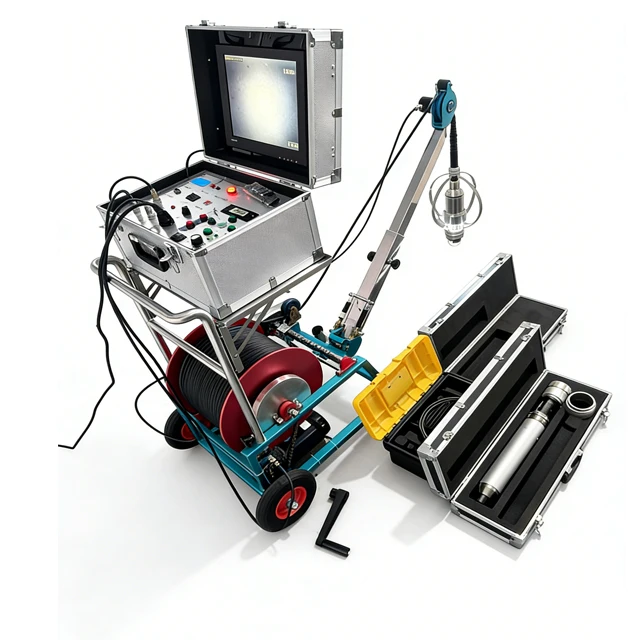

Control Box
|
ABS engineering plastic control box, 220V (12V is optional) input
|
|
Winch
|
Electric and manual combined winch, detachable
|
|
Monitor
|
7” (10” is optional) high-brightness LED monitor
|
|
Control System
|
Touch screen all-in-one controls every function(camera rotation, light source and focus adjustment),live video preview, capture
images while recording video, direct typing function, U disk and TF card video storage. Manual control cable lifting and speed. |
|
Single Rotary Probe
|
Φ90mm, φ75mm, φ40mm is optional. The camera rotates 360 degrees clockwise and infinitely counterclockwise, tilting 180 degrees
flip. Brightness focal length is adjustable. Manually control the direction and angle of the downhole camera, the brightness of the light source and focal length for clear video images, 5-level dimming. φ40cm and φ75mm probe are with front 6/8 highlight patch beads, φ90mm probe is with front 12 highlight patch beads, rear 16 LED strong light bulb bezel focal |
|
Dual Rotary Probe
|
Φ75mm, φ50mm, φ41mm is optional. Front rear camera, rear side wall camera 360 degree clockwise rotation and counterclockwise
infinite rotation. Brightness of the light source can be adjusted for both front and rear lights, five-level dimming. φ75mm side wall camera can adjust the focus. |
|
Depth Counter
|
Accurate to 0.005m
|
|
Logging Cable
|
6-core Bearing, 800m
|
|
Centralizer
|
High Elasticity Stainless Steel
|
|
12V Input(Optional)
|
Battery power supply function (available within 600 meters)
|
|
Tool Box
|
Camera probe and connecting cable and accessories
|
