Description

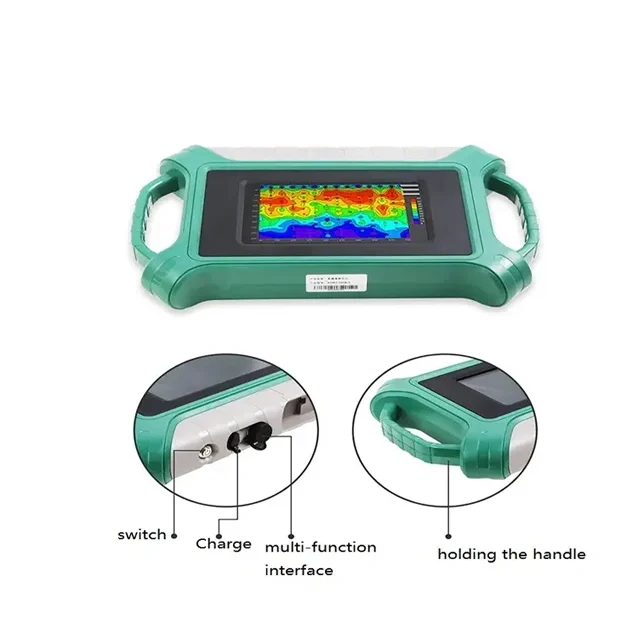

Automatic Underground Water Detector
Based on over 40 years research and development design and exploration, the mobile phone water/metal detector realize
Based on over 40 years research and development design and exploration, the mobile phone water/metal detector realize
the technology that you can use the mobile phone or tablet PC to do complex data calculation, then the graphs will automatic form,
store in the cloud, and you can communicate with experts advisors on line about your graphs.Besides, if use our probes to measure,
then you can wirelessly detect. It uses the mobile phone’s Bluetooth to connect.
And in the “MN input”, you can use traditional MN cable lines or wireless sensor to measure.
If with wireless sensor, you don’t have to cabling and can just measure by walk and stop, free of USB disk, detection button.
If with wireless sensor, you don’t have to cabling and can just measure by walk and stop, free of USB disk, detection button.
Automatcally mapping by mobile phone, communicating with experts advisors online, uploading the data into cloud and store permanently.
Specification

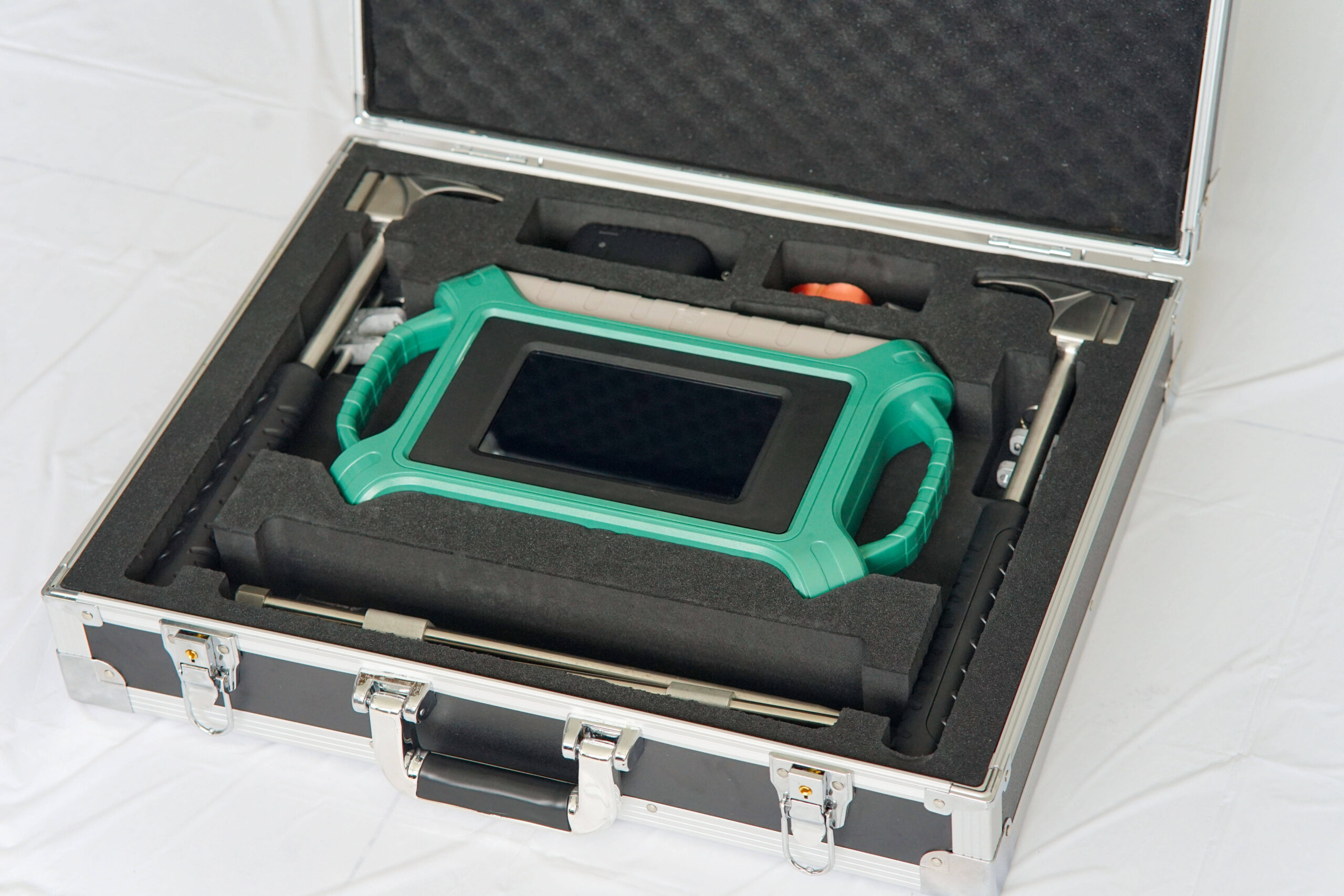

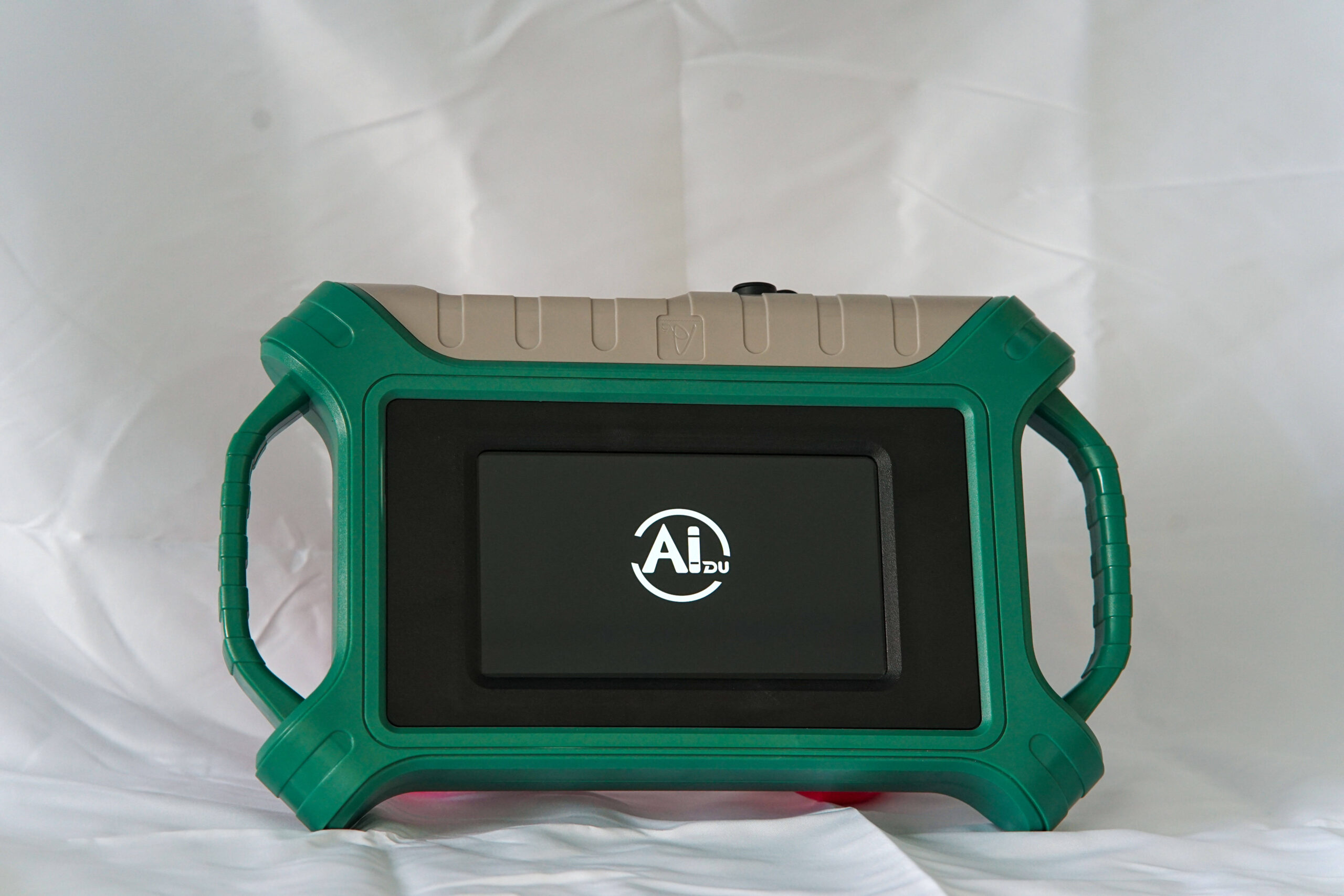

New ADMT-1200S-X Single Channel Real Time Imaging Water Finder|Well Drilling Water Finder
Main Applications of ISO9001 & CE Certifi 100m portable mobile phone 3D mapping ground water detector ,water detection device
ADMT- 300S-X obtained many patents for invention (Patent number 201320054153.5,201120214308.8,201120567915.2,201320303919.9),
especially for invention patent of Field Source Modify of “Geophysical methods for Earth’s Electromagnetic Field Source Modify and Measuring
ADMT- 300S-X obtained many patents for invention (Patent number 201320054153.5,201120214308.8,201120567915.2,201320303919.9),
especially for invention patent of Field Source Modify of “Geophysical methods for Earth’s Electromagnetic Field Source Modify and Measuring
Devices”, solved the problems of inconsistent source of natural electric field intensity and disadvantages of changes at any time.
ADMT- 600S-X groundwater detector is measured by natural electromagnetic field strength to response the changes of resistivity,
ADMT- 600S-X groundwater detector is measured by natural electromagnetic field strength to response the changes of resistivity,
to analyse and judge the location, depth of groundwater and other related information, can be detailed survey and the exploration
of groundwater j, solve drinking water, industrial water and agricultural irrigation demand, to great effect to the successful
drilling Wells for water, under the general customers the consistent high praise.
drilling Wells for water, under the general customers the consistent high praise.
|

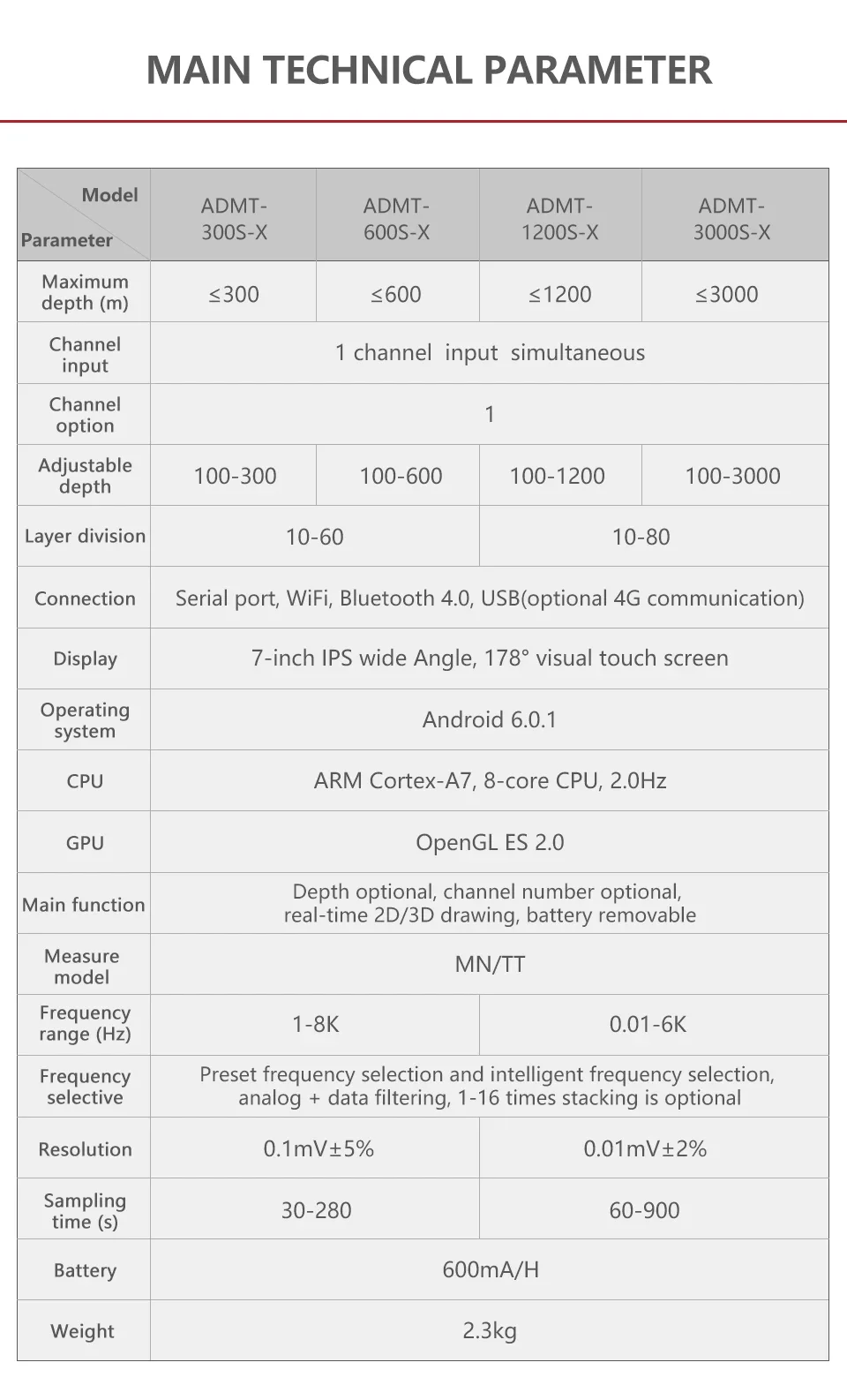

Parameter Model
|
ADMT-1200S-X
|
ADMT-600S-X
|
|
Depth(m)
|
≤1200
|
≤600
|
|
Adjustable depth
|
100/200/300/400/500/600/800/1200m
|
100/200/300/400/500/600
|
|
Connection method
|
Serial port, Wifi, Bluetooth 4.0, USB (optional 4G communication)
|
|
|
Display screen
|
7-inch
|
|
|
operating system
|
Android 6.0.1
|
|
|
CPU
|
ARM Cortex-A7(AD24 bit 1Msps)
|
|
|
Main functions
|
optional depth, real-time 2D/3D drawing, removable battery
|
|
|
Measurement mode
|
MN/TT
|
|
|
Measuring range
|
±5V
|
|
|
Frequency range(HZ)
|
1-8K
|
|
|
Frequency selective filtering
|
Preset frequency selection and intelligent frequency selection, analog + data filtering 1-16 times superposition optional
|
|
|
Resolution
|
0.1mV±5%
|
|
|
Sampling time (seconds)
|
40-280
|
|
|
Battery power consumption
|
600mA/H
|
|
|
Host weight
|
2.3kg
|
|
Best groundwater detector product of China!
The accuracy is over 95%!
Increase the drilling success rate by 70%!
Users in more than 100 countries and regions!
48years experience as a water finder, don’t waste time in unprofessional!
Confirm the Water well location before drilling, prevent the dry borehole, save big cost!
The accuracy is over 95%!
Increase the drilling success rate by 70%!
Users in more than 100 countries and regions!
48years experience as a water finder, don’t waste time in unprofessional!
Confirm the Water well location before drilling, prevent the dry borehole, save big cost!

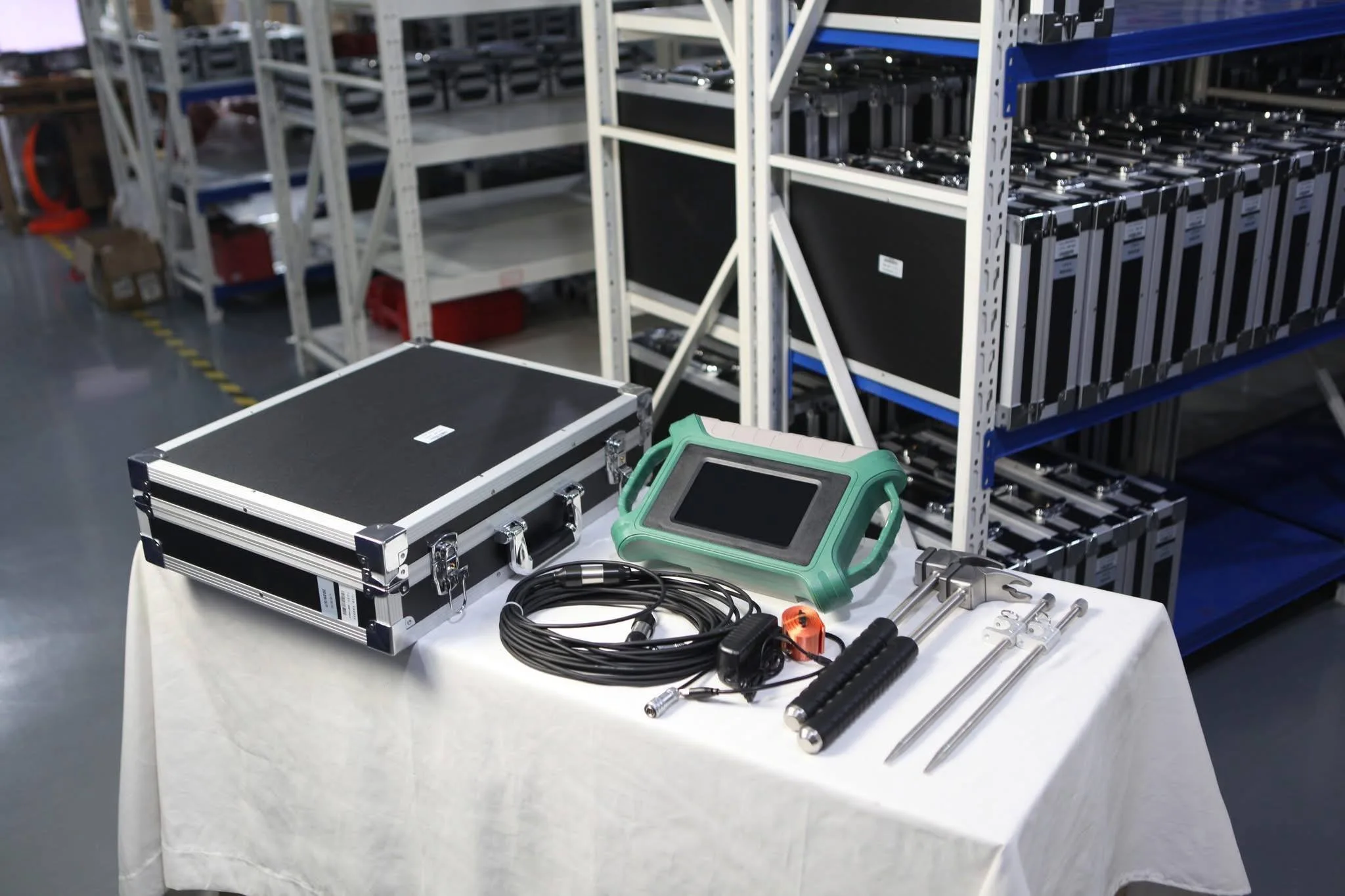

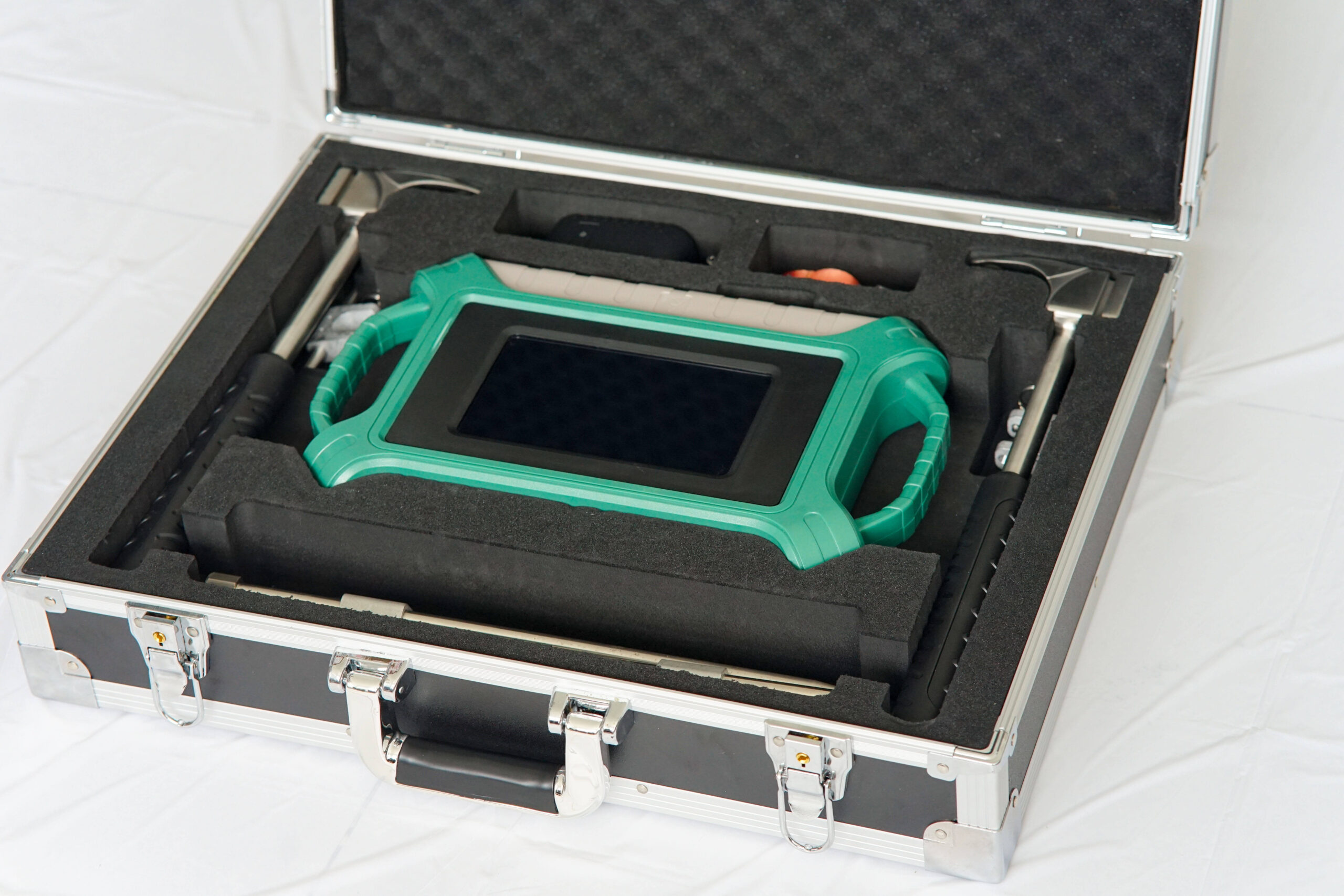

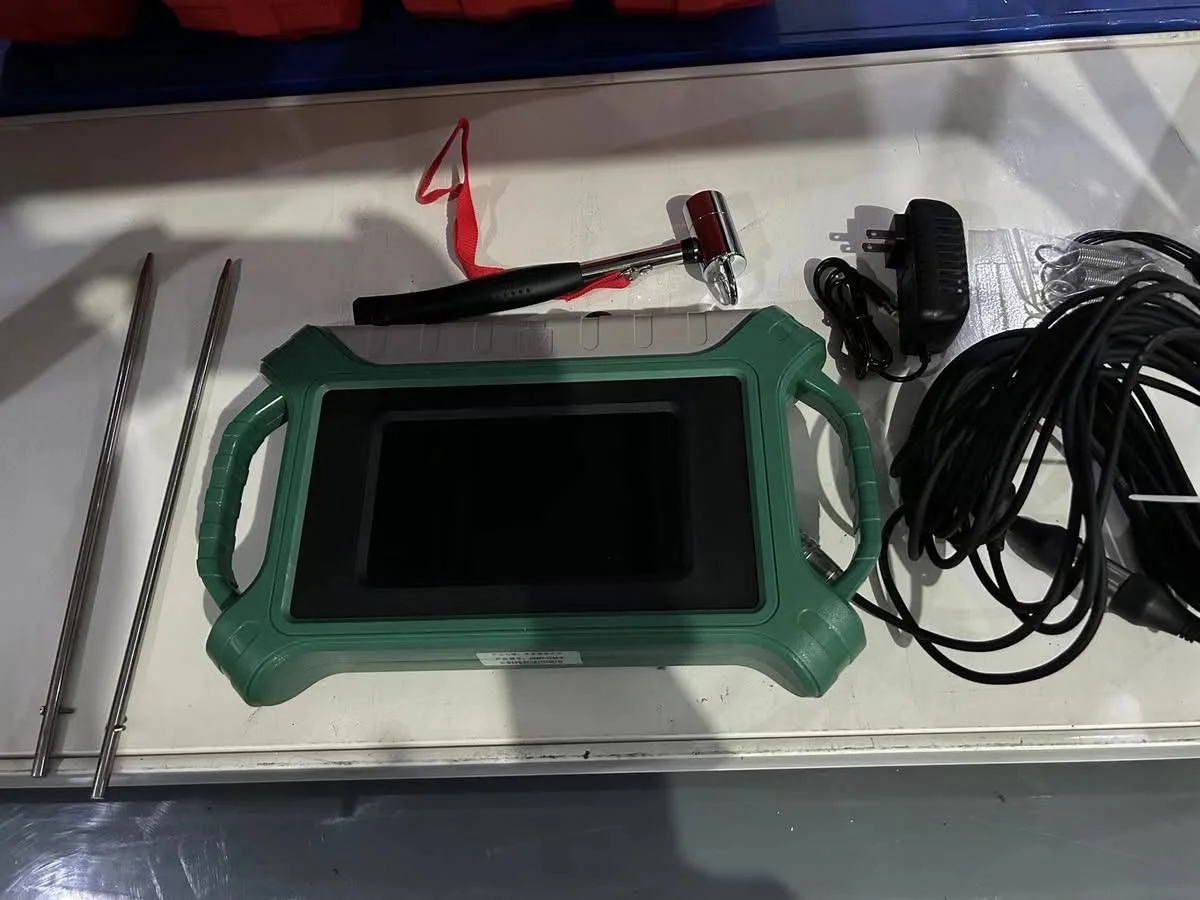

Packing & Delivery
