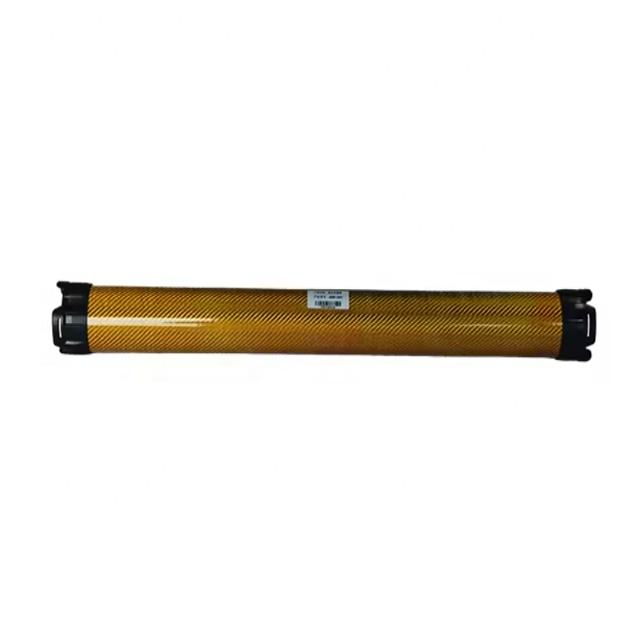

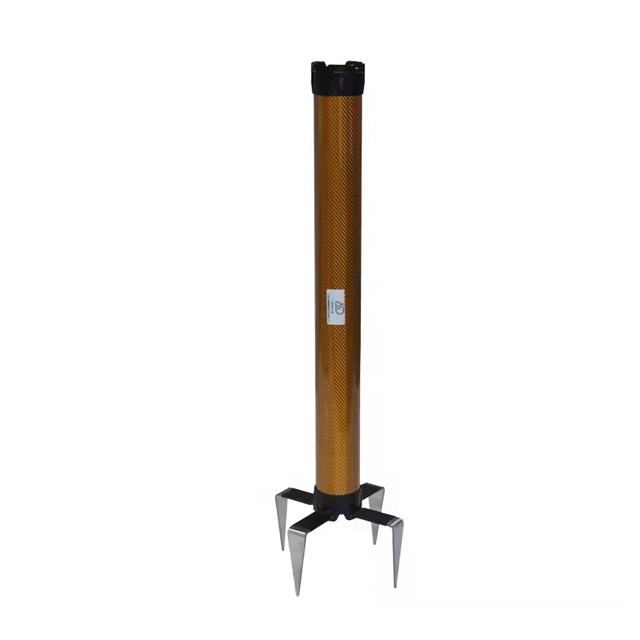

New ADMT-3HT2 High Quality Fully Wireless Connection Golden Rod 300 Meters Depth Under Water Detector

New ADMT-3HT2 High Quality Fully Wireless Connection Golden Rod 300 Meters Depth Under Water Detector - Image 2

New ADMT-3HT2 High Quality Fully Wireless Connection Golden Rod 300 Meters Depth Under Water Detector - Image 3

New ADMT-3HT2 High Quality Fully Wireless Connection Golden Rod 300 Meters Depth Under Water Detector - Image 4

New ADMT-3HT2 High Quality Fully Wireless Connection Golden Rod 300 Meters Depth Under Water Detector

Automatic Underground Water Detector
ADMT-3HT is the world’s first Internet of Things instrument, which is developed together with Guilin Technology Hydrogeological

Investigation Institute. Based on over 40 years R&D design and exploration, the mobile phone water detector realize the technology that

you can use the phone or tablet PC to do complex data calculation, then the graphs will automatic form, store in thecloud, and you can

communicate with experts advisors on line about your graphs.

Category: Underground Water Detector

Description
Reviews (0)

Description

Specification

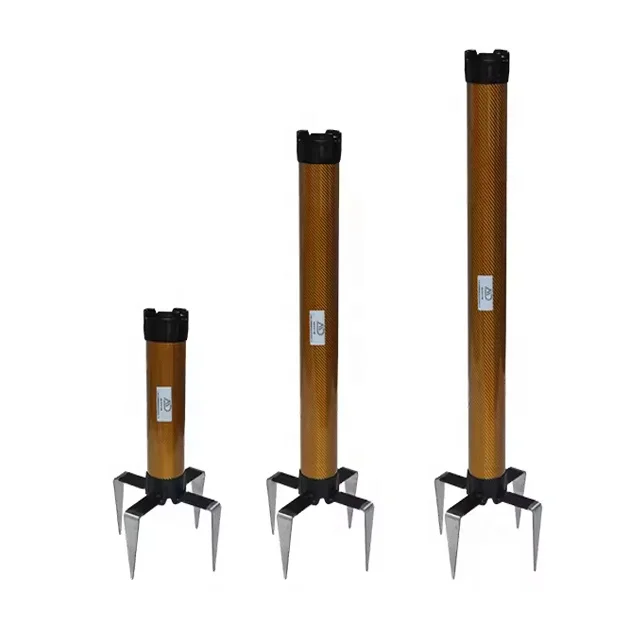

Product model: ADMT-3H, ADMT-3HT2, ADMT-3HT3, ADMT-8HT2, ADMT-8HT3
Product advantages: Aidu’s new water-finding golden hoop inherits the advantages of the previous generation of golden hoop,

which is completely wireless and easy to operate, and makes up for the shortcomings of the product, improves the accuracy of the

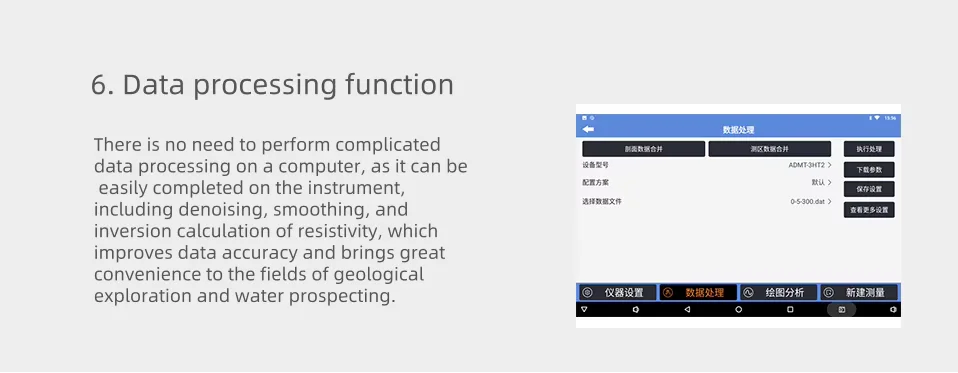

instrument, and adds many new functions such as segmented measurement, depth stratification, data processing, 2D/3D/slice diagrams,

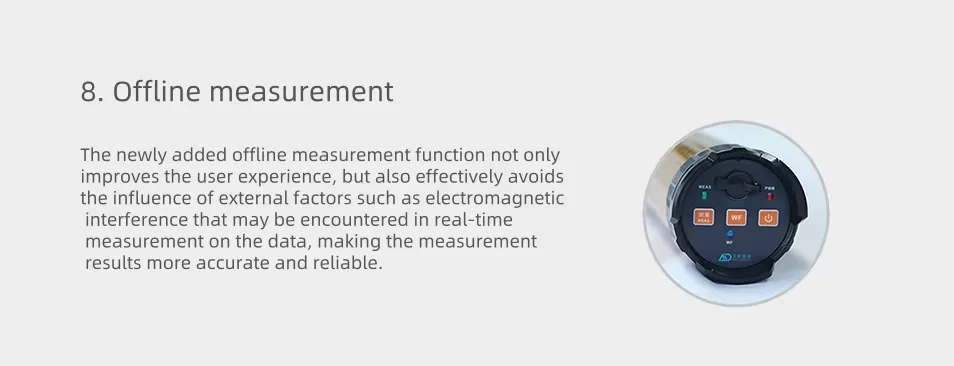

AI analysis, offline measurement, etc., which improves the accuracy and user experience, and will bring reliable results for well drilling

and water finding, and improve economic benefits.

Model	ADMT-3H	ADMT-3HT2	ADMT-3HT3	ADMT-8HT2	ADMT-8HT3
Adjustable depth(m)	300			800
Depth interval	5/10/20(m)
Battery power consumption	7.4V2600mAH lithium battery, power consumption is about 140mA
Connection method	WIFI

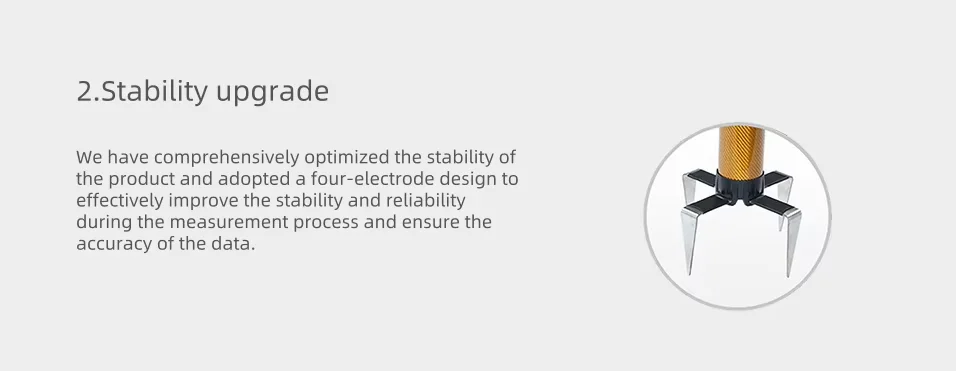

MN electrode	1009530mm L-shaped alloy electrode 4 pcs
The main function	Optional start and end depth range, adjustable depth interval, 2D/3D automatic drawing, AI automatic analysis, online/offline measurement mode
TT electromagnetic induction coil (mm/w)	/	300/4	300/4	450/8	550/8
TT electromagnetic induction core (KmH/m)	/	80	100	100	120
working environment	Can be inserted into the ground	any ground
Frequency range (HZ)	1-8K
Measurement mode	MN	MN/TT
Resolution	0.1mV±5%			0.01mV±1%
Sampling time (seconds)	14-420	14-420	14-700	14-420	14-700
Shipping weight (kg)	4.5	6.0		7.5

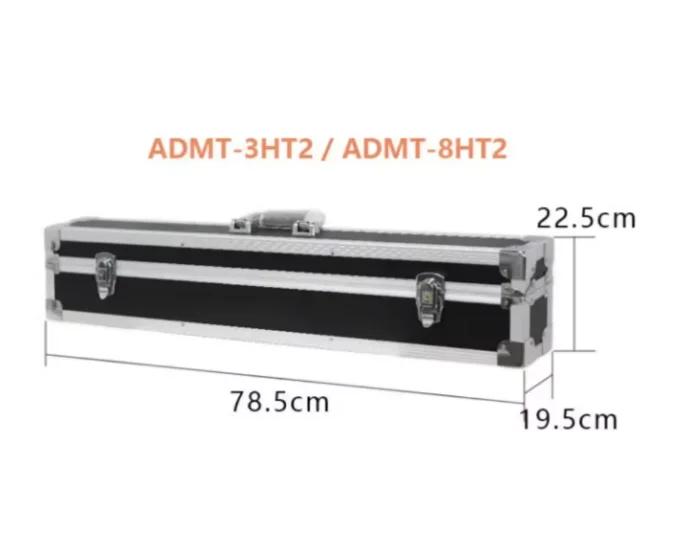

Length weight (mm)	540225195	785225195		940225195

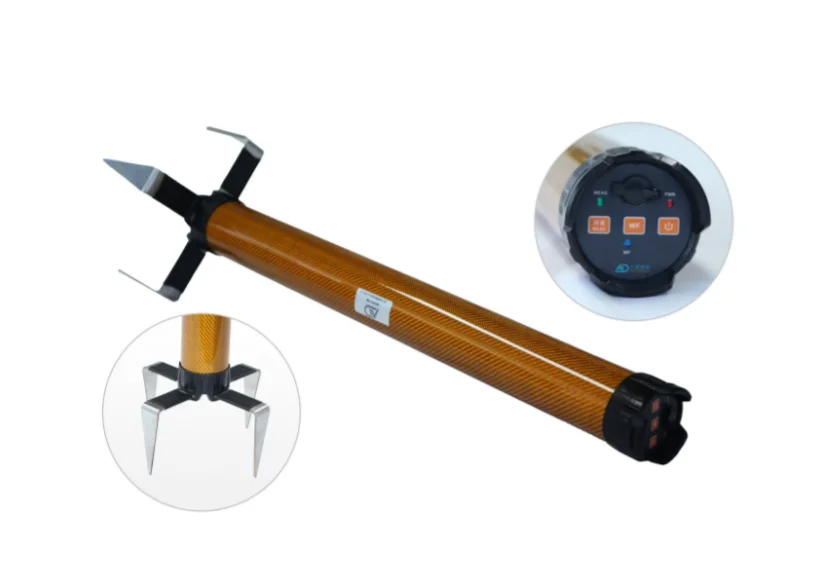

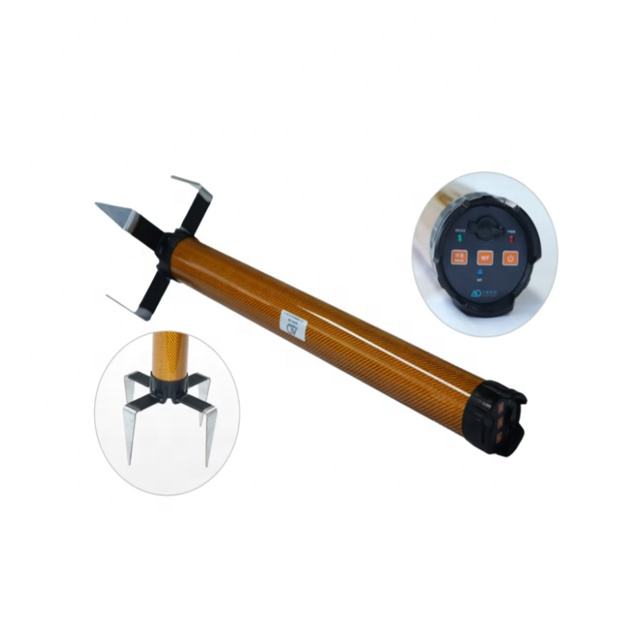

Besides, if use our probes to measure, then you can wirelessly detect. It uses the mobile phone’s Bluetooth to connect. And in the“MN input”,

you can use traditional MN cable lines or wireless sensor to measure.If with wireless sensor, you don’t have to cabling and can just measure

by walk and stop, free of USB disk, detection button.
Automatcally mapping by mobile phone, communicating with experts advisors online, uploading the data into cloud and store permanently.
The device configuration includes:
Host, cable, electrode rod, packing box, charger and other accessories.

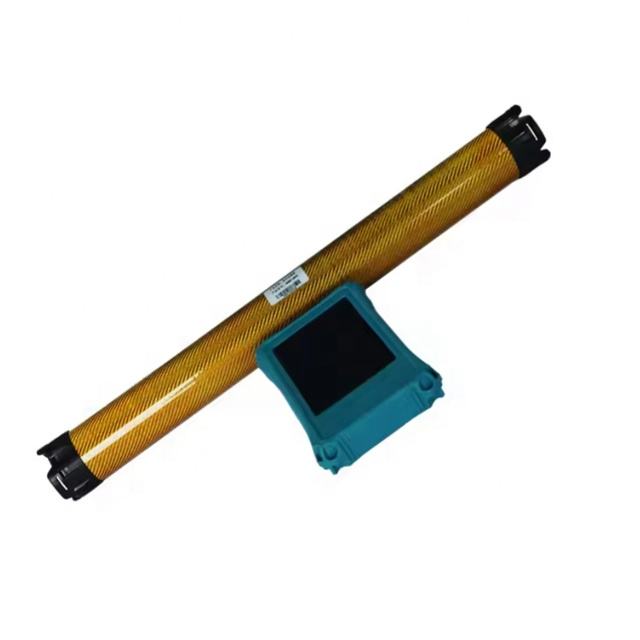

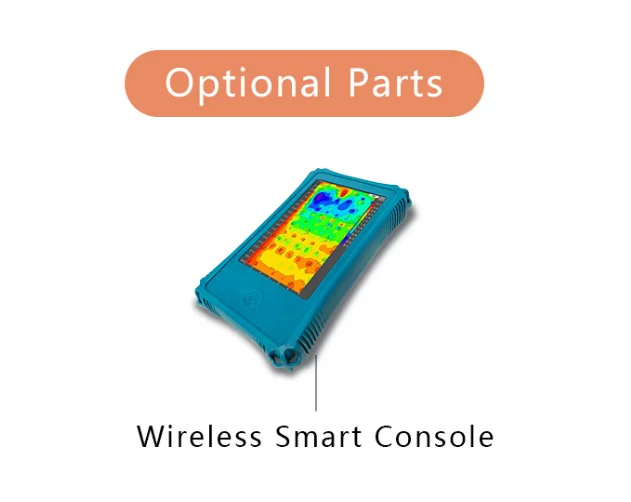

Automatic imaging:7″ Android touch screen into 2D, 3D and curved images in real time.

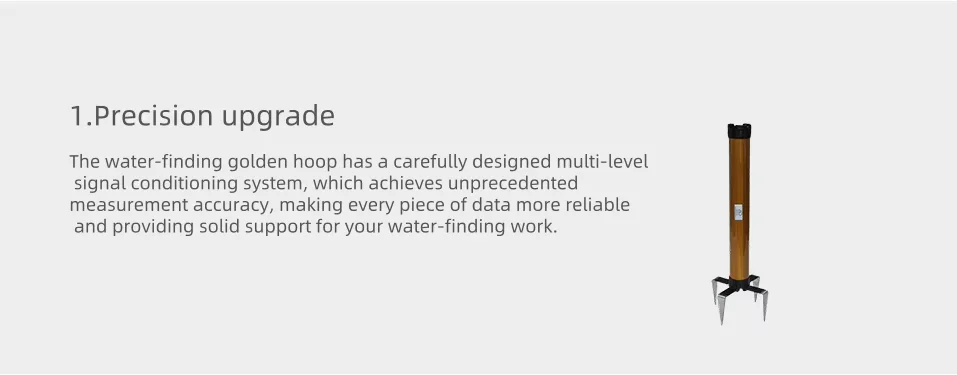

Precise and stable:Over 40 years of iterative upgrades for high measurement accuracy and stable performance.
Triple screen interoperability:The instrument screen, mobile phone screen and computer screen are interoperable.

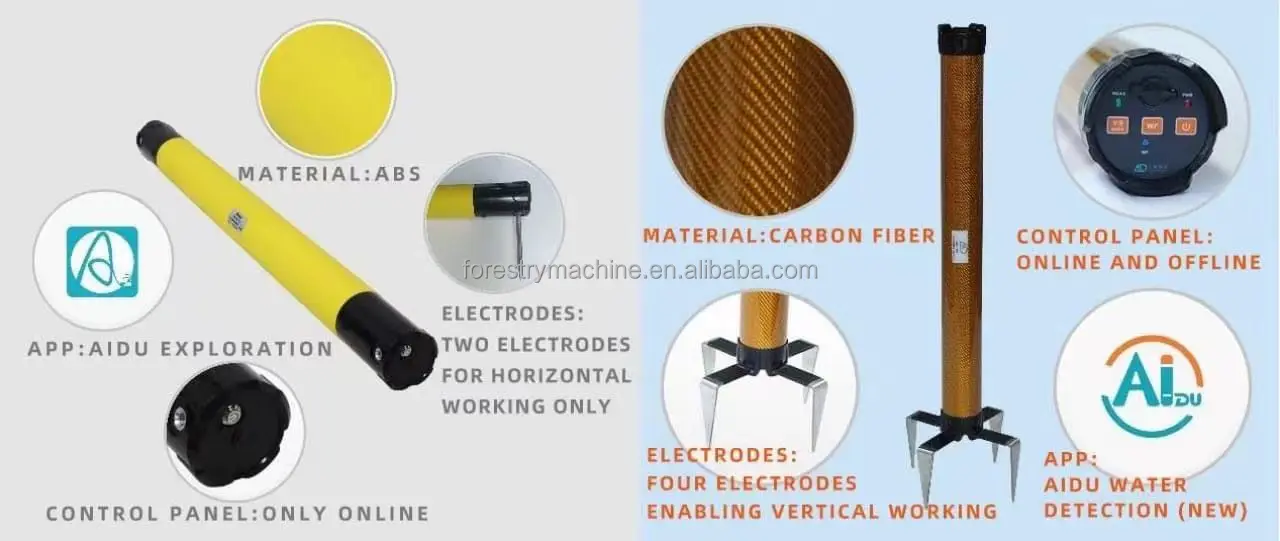

Intelligent and flexible:MN electrode and TT probe measurements can be switched, with optional wireless probe or water finding gold band.
