Automatic Underground Water Detector
Based on over 40 years research and development design and exploration, the mobile phone water/metal detector realize the technology that you can use the mobile phone or tablet PC to do complex data calculation, then the graphs will automatic form, store in the cloud, and you can communicate with experts advisors on line about your graphs.Besides, if use our probes to measure, then you can wirelessly detect. It uses the mobile phone’s Bluetooth to connect.
Based on over 40 years research and development design and exploration, the mobile phone water/metal detector realize the technology that you can use the mobile phone or tablet PC to do complex data calculation, then the graphs will automatic form, store in the cloud, and you can communicate with experts advisors on line about your graphs.Besides, if use our probes to measure, then you can wirelessly detect. It uses the mobile phone’s Bluetooth to connect.
And in the “MN input”, you can use traditional MN cable lines or wireless sensor to measure.
If with wireless sensor, you don’t have to cabling and can just measure by walk and stop, free of USB disk, detection button.
If with wireless sensor, you don’t have to cabling and can just measure by walk and stop, free of USB disk, detection button.
Automatcally mapping by mobile phone, communicating with experts advisors online, uploading the data into cloud and store permanently.
Specification

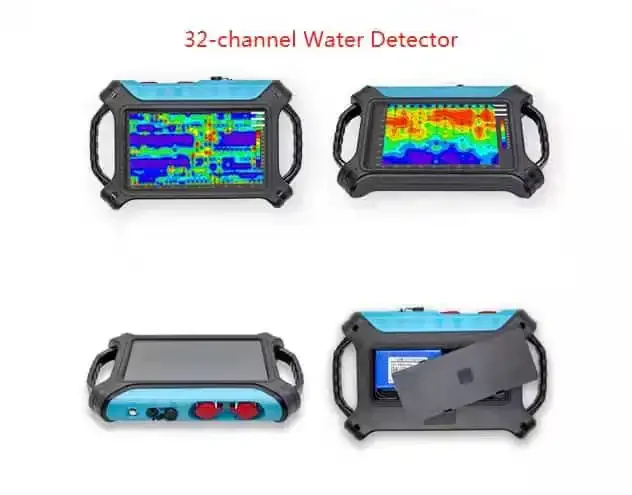

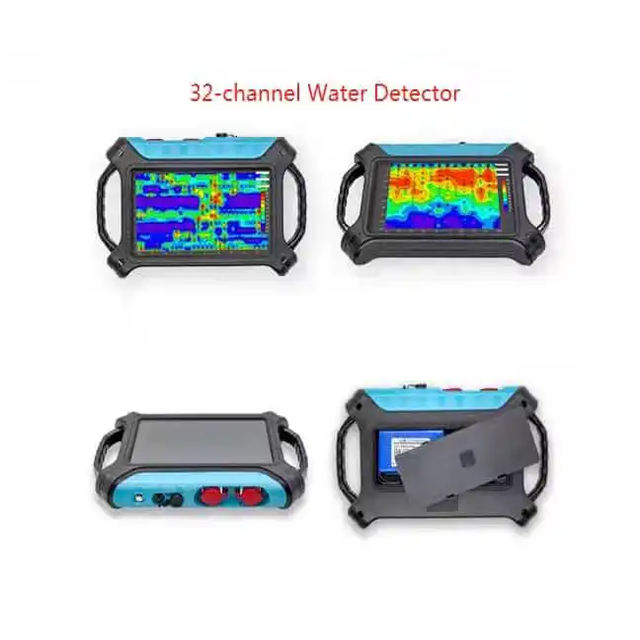

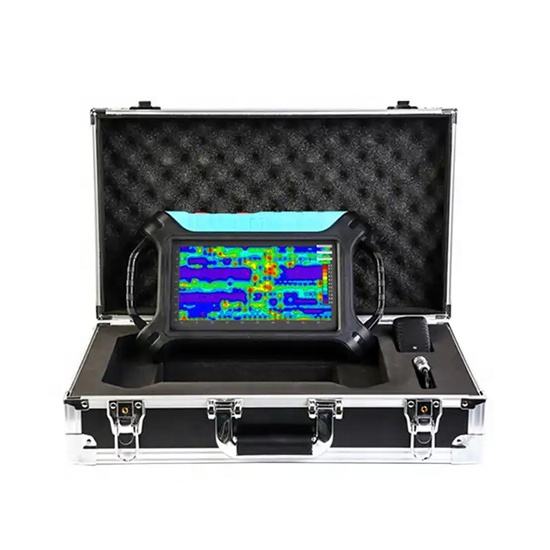

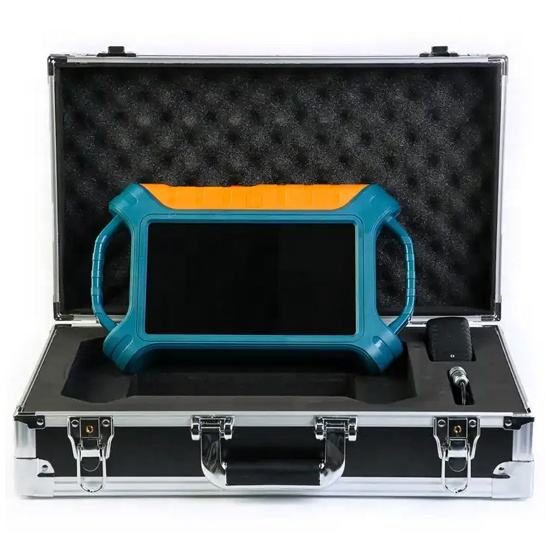

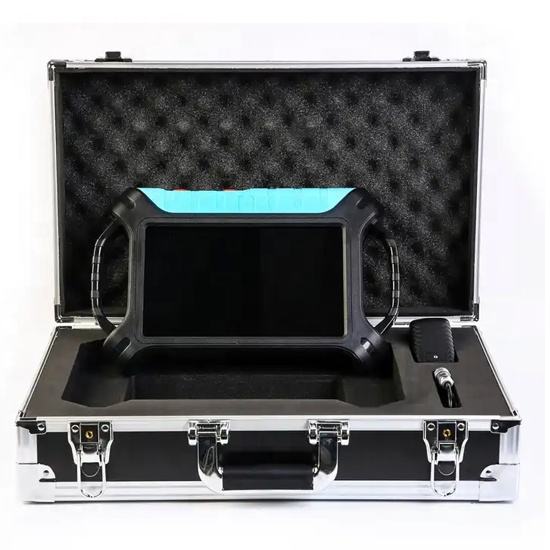

New ADMT-400SX-32D 32 Channel 400 meter High Efficiency accuracy Underground Water Detector
ADMT-400SX-32D of 3D Touch screen water detector combines the advantages of a variety of electric exploration methods such as frequency sounding method to introduce a light, effcient, intelligent and convenient electric water detector with a detection depth of 400 meters

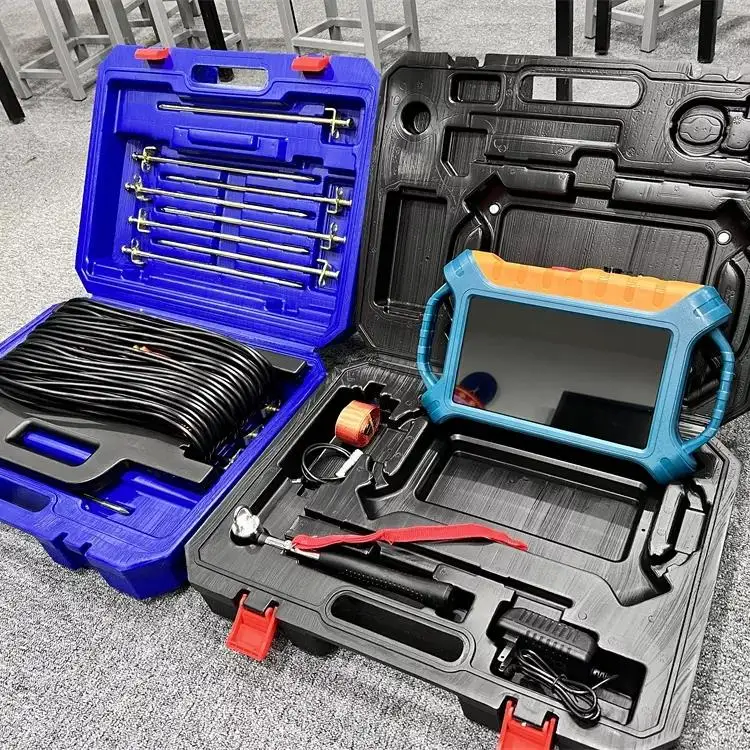

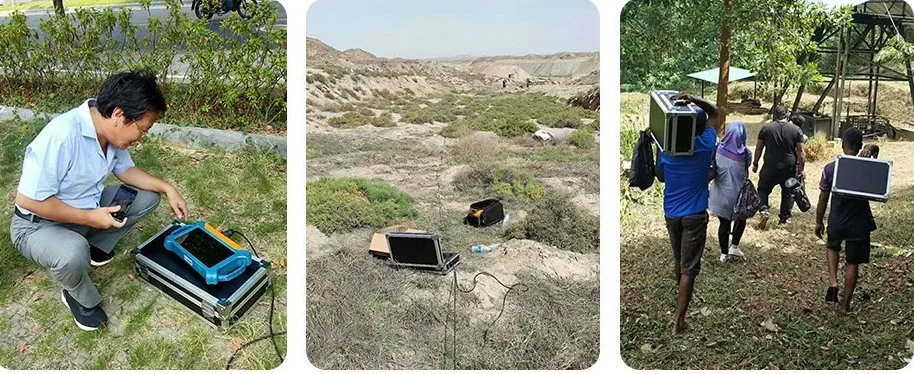

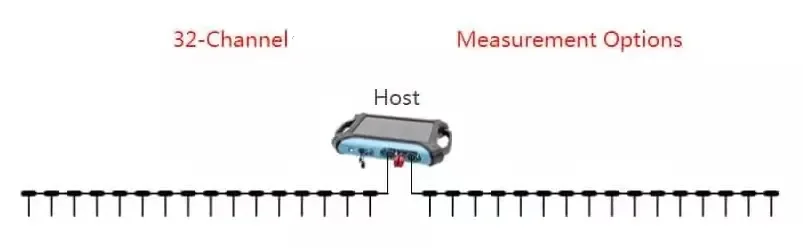

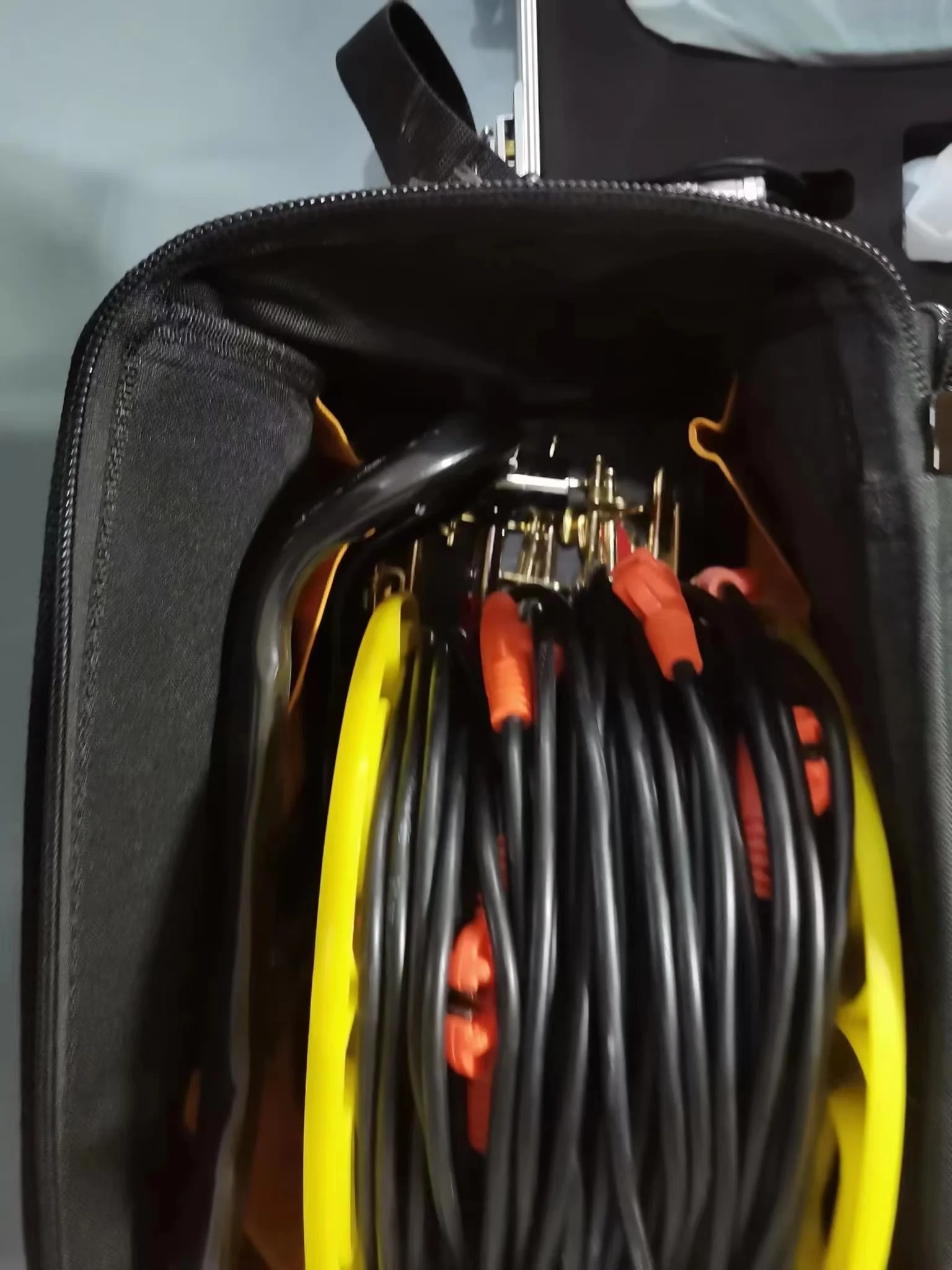

Our water detectors have different measurement methods, cable measurement and wireless probe measurement. The pull-wire measurement method can be adapted to the large area of the site for measurement. It is necessary to insert 32 electrode plates into the ground for measurement to detect the height difference of the underground resistivity to reflect the change of the water level.
Our water detectors have different measurement methods, cable measurement and wireless probe measurement. The pull-wire measurement method can be adapted to the large area of the site for measurement. It is necessary to insert 32 electrode plates into the ground for measurement to detect the height difference of the underground resistivity to reflect the change of the water level.
|
Model
|
ADMT-400SX-32D
|
ADMT-600SX-32D
|
ADMT-1200SX-32D
|
ADMT-3000SX-32D
|
ADMT-4000SX-32D
|
|
Maximum Depth(m)
|
≤400
|
≤600
|
≤1200
|
≤3000
|
≤4000
|
|
Channel Input
|
32 simultaneous input, maximum electrode spacing 5m
|
||||
|
Channel Selection
|
Single to Thirty
|
||||
|
Optional depth
|
Optional within the maximum depth, refer to 100/200/300/400/500/600/800/1200/2000/3000/4000m
|
||||
|
Deep layering
|
40-160
|
||||
|
Connection method
|
Serial port, Wifi, Bluetooth 4.0, USB (optional 4G communication)
|
||||
|
Display
|
10.1-inch IPS wide-angle 178° visual touch screen(1024*600)
|
||||
|
Operating system
|
Android 6.0.1
|
||||
|
CPU
|
ARM Cortex-A7 8-core CPU 2.0Hz
|
||||
|
GPU
|
OpenGL ES 2.0
|
||||
|
Main features
|
optional depth, real-time 2D/3D drawing, removable battery
|
||||
|
Measurement mode
|
MN/TT
|
||||
|
Frequency range (HZ)
|
1-8K
|
0.01-6K
|
|||
|
Frequency selection filter
|
Preset frequency selection and intelligent frequency selection, analog + data filter 1-16 times superposition optional
|
||||
|
Resolution
|
0.001-7K
|
||||
|
Sampling time (seconds)
|
120-7200
|
160-9000
|
|||
|
Battery power consumption
|
900mA/H
|
||||
|
Host weight
|
3.0kg
|
||||
product some feature:
2.1 Accurate and efficient:
Using 1-16, 1-32 channels to input measurement at the same time, to solve the defects of MT electrical field source changes, the
accuracy rate is greatly improved, and the accuracy rate is 30-60% higher than that of the general single channel.
2.2 Smart and convenient:
Standard 7/10 inch touch screen for real-time drawing, and intercommunication with mobile phone or tablet computer, PC computer
for data processing and drawing.
2.3 Depth adjustable:Optional depth within the maximum depth range of different models.
2.4 Channel optional:1,1~16,1~32 Any channel selection.
2.5 Flexible input:
It can input 1, 1-16, 1-32 channels of MN electrodes, and the MN spacing is flexibly variable from 1-5 meters. Electromagnetic
sensor input can also be used to solve the measurement of special formations.
2.1 Accurate and efficient:
Using 1-16, 1-32 channels to input measurement at the same time, to solve the defects of MT electrical field source changes, the
accuracy rate is greatly improved, and the accuracy rate is 30-60% higher than that of the general single channel.
2.2 Smart and convenient:
Standard 7/10 inch touch screen for real-time drawing, and intercommunication with mobile phone or tablet computer, PC computer
for data processing and drawing.
2.3 Depth adjustable:Optional depth within the maximum depth range of different models.
2.4 Channel optional:1,1~16,1~32 Any channel selection.
2.5 Flexible input:
It can input 1, 1-16, 1-32 channels of MN electrodes, and the MN spacing is flexibly variable from 1-5 meters. Electromagnetic
sensor input can also be used to solve the measurement of special formations.

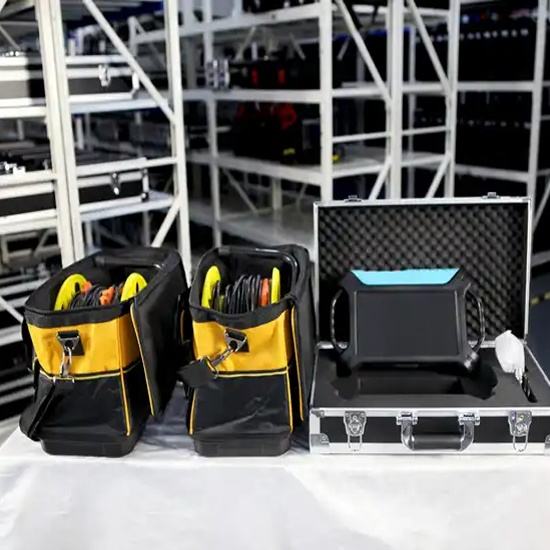

Packing & Delivery

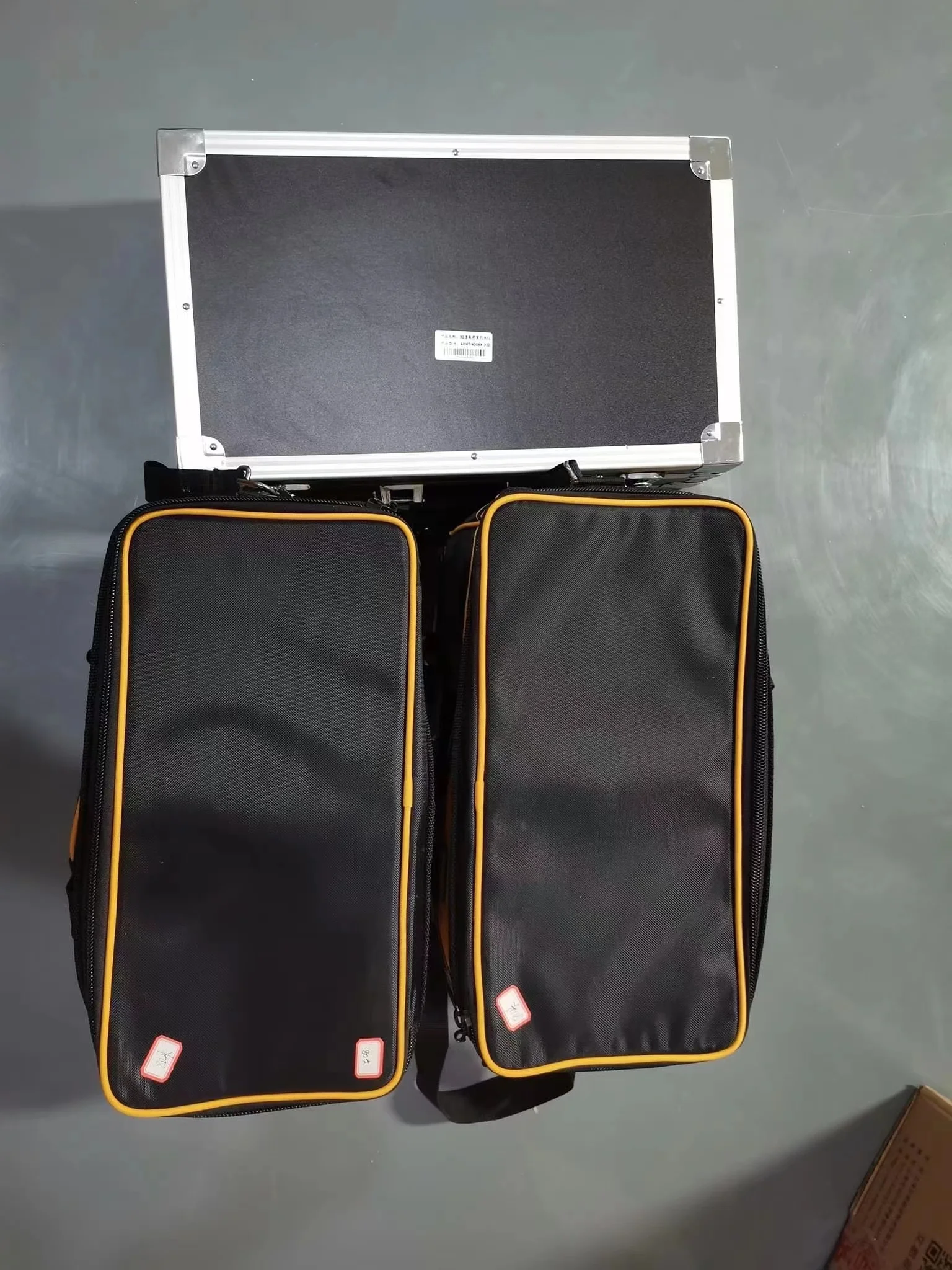

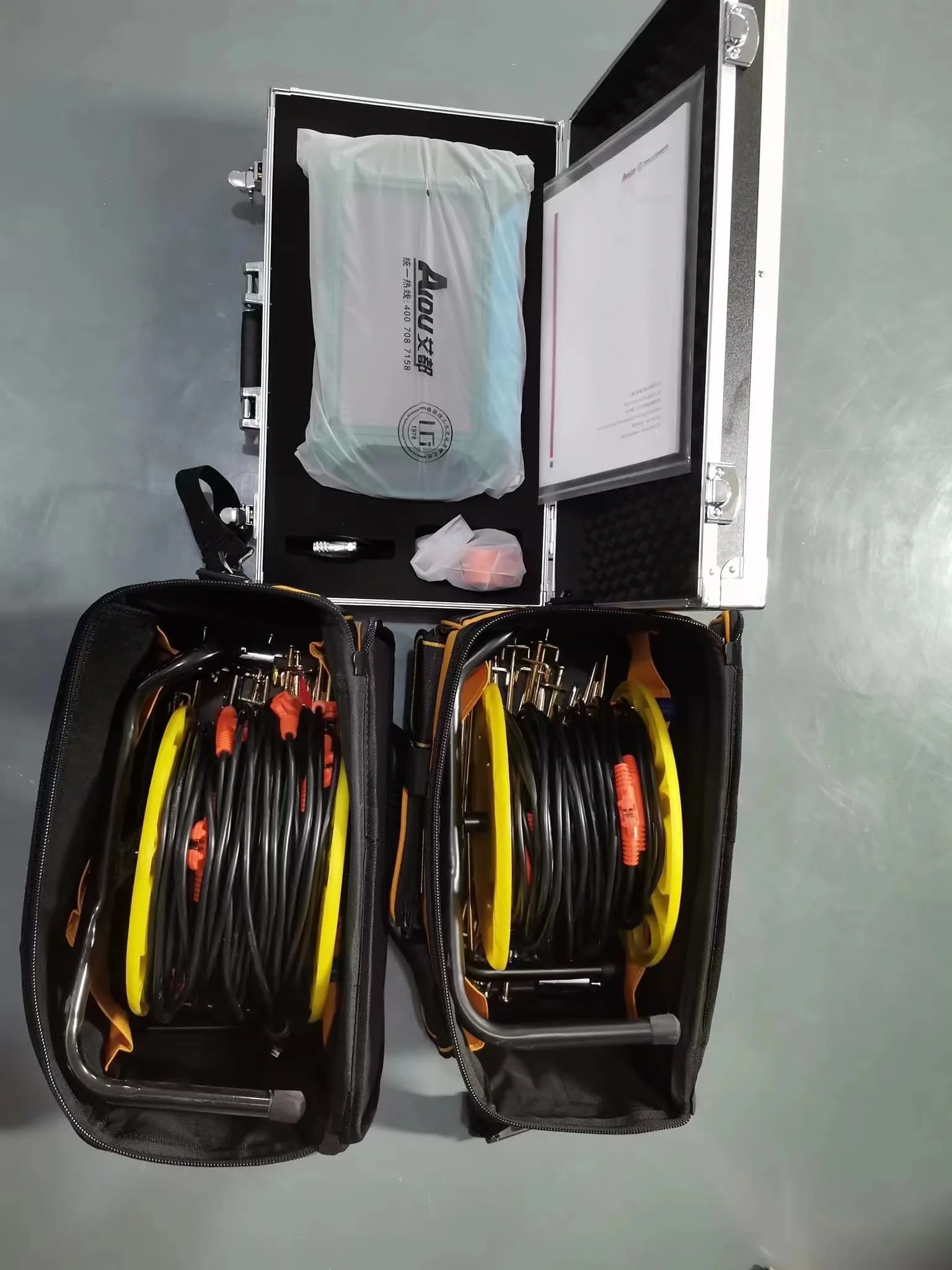

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
