New ADMT-500SX-16D Geologic Exploration Instrument Under Ground Water Detector 500m Depth
Automatic Underground Water Detector
Based on over 40 years research and development design and exploration, the mobile phone water/metal detector realize the technology that you can use the mobile phone or tablet PC to do complex data calculation, then the graphs will automatic form, store in the cloud, and you can communicate with experts advisors on line about your graphs.Besides, if use our probes to measure, then you can wirelessly detect. It uses the mobile phone’s Bluetooth to connect.
Based on over 40 years research and development design and exploration, the mobile phone water/metal detector realize the technology that you can use the mobile phone or tablet PC to do complex data calculation, then the graphs will automatic form, store in the cloud, and you can communicate with experts advisors on line about your graphs.Besides, if use our probes to measure, then you can wirelessly detect. It uses the mobile phone’s Bluetooth to connect.
And in the “MN input”, you can use traditional MN cable lines or wireless sensor to measure.
If with wireless sensor, you don’t have to cabling and can just measure by walk and stop, free of USB disk, detection button.
If with wireless sensor, you don’t have to cabling and can just measure by walk and stop, free of USB disk, detection button.

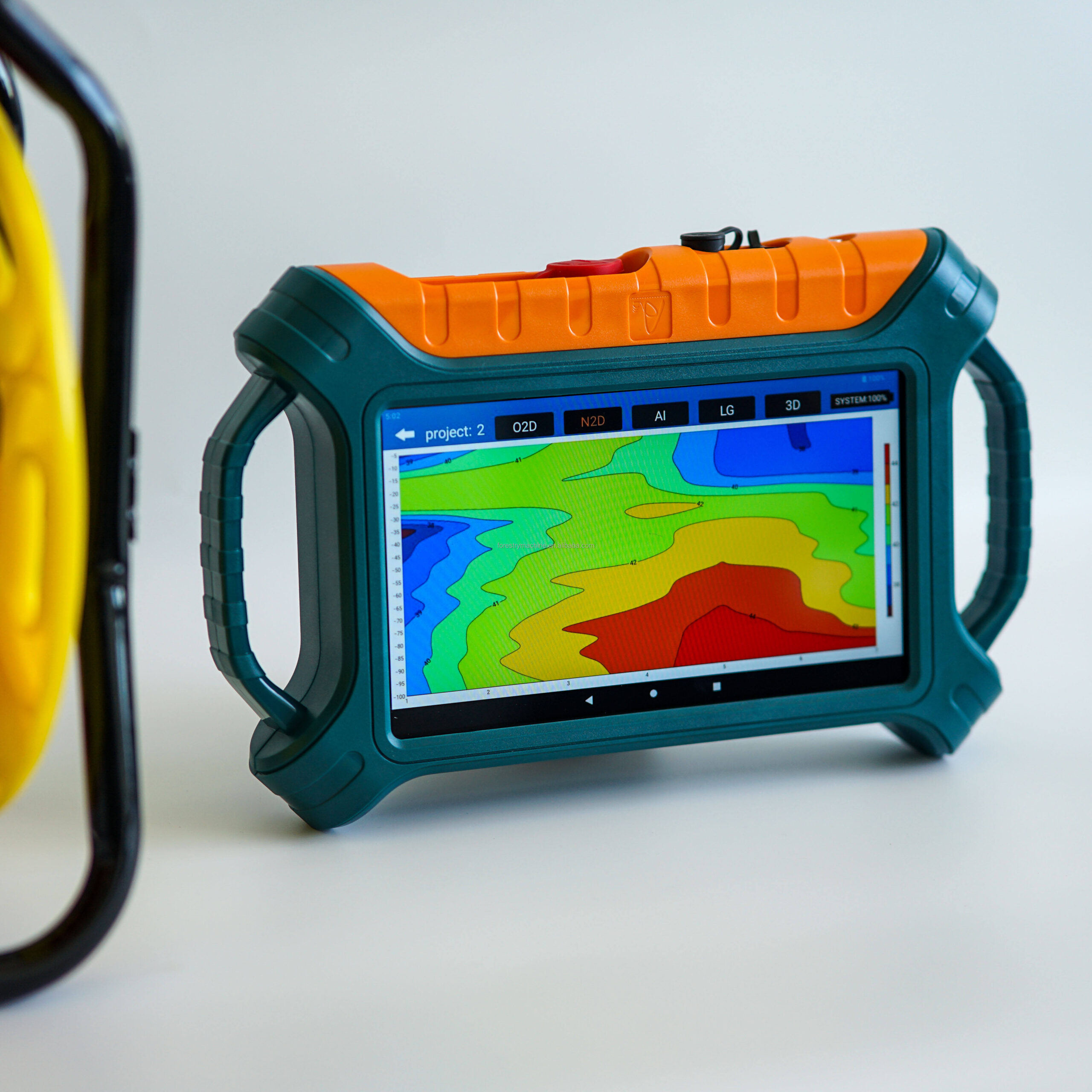

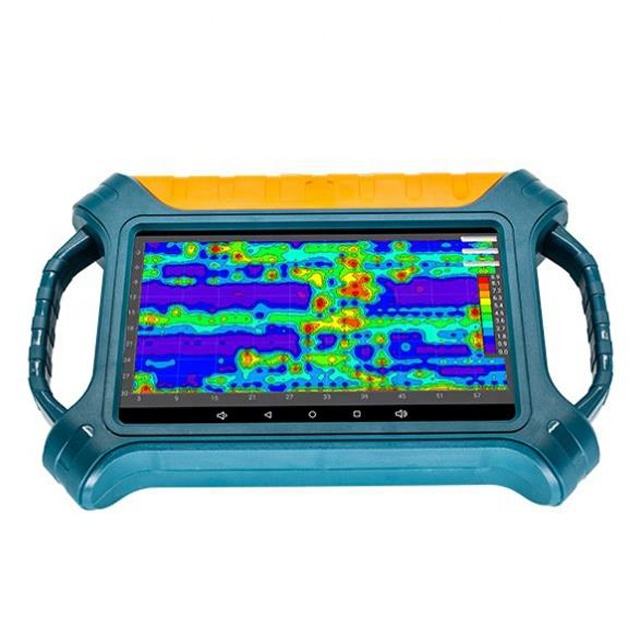

Automatcally mapping by mobile phone, communicating with experts advisors online, uploading the data into cloud and store permanently.
Specification
New ADMT-500SX-16D Geologic exploration instrument under ground water detector 500m depth
ADMT-500SX-16D Multi-channel More Intelligence ,More Precision Groundwater Detector/Water finderintelligent imaging water detector
is the first single man operated, unattended intelligent geophysical exploration instrument developed by our company and the
Institute of hydrology and geological exploration of Guilin. A single section can be measured at one time. It uses the MT of
electrical prospecting and combines the advantages of the frequency sounding method and the AMT method.

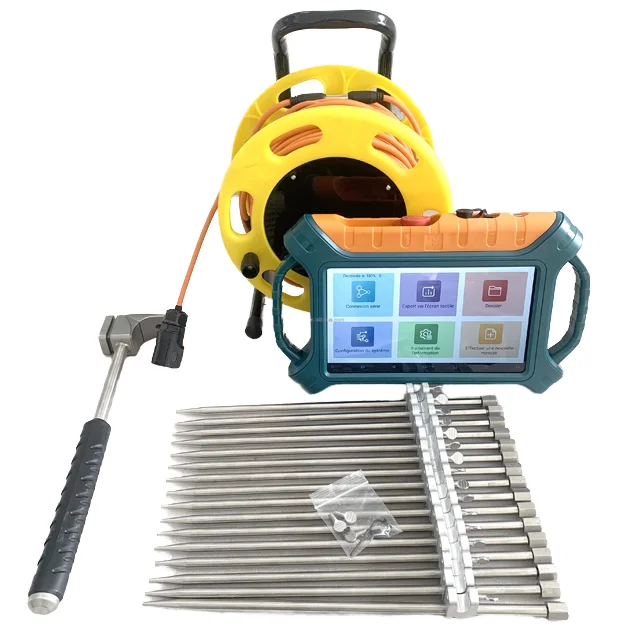

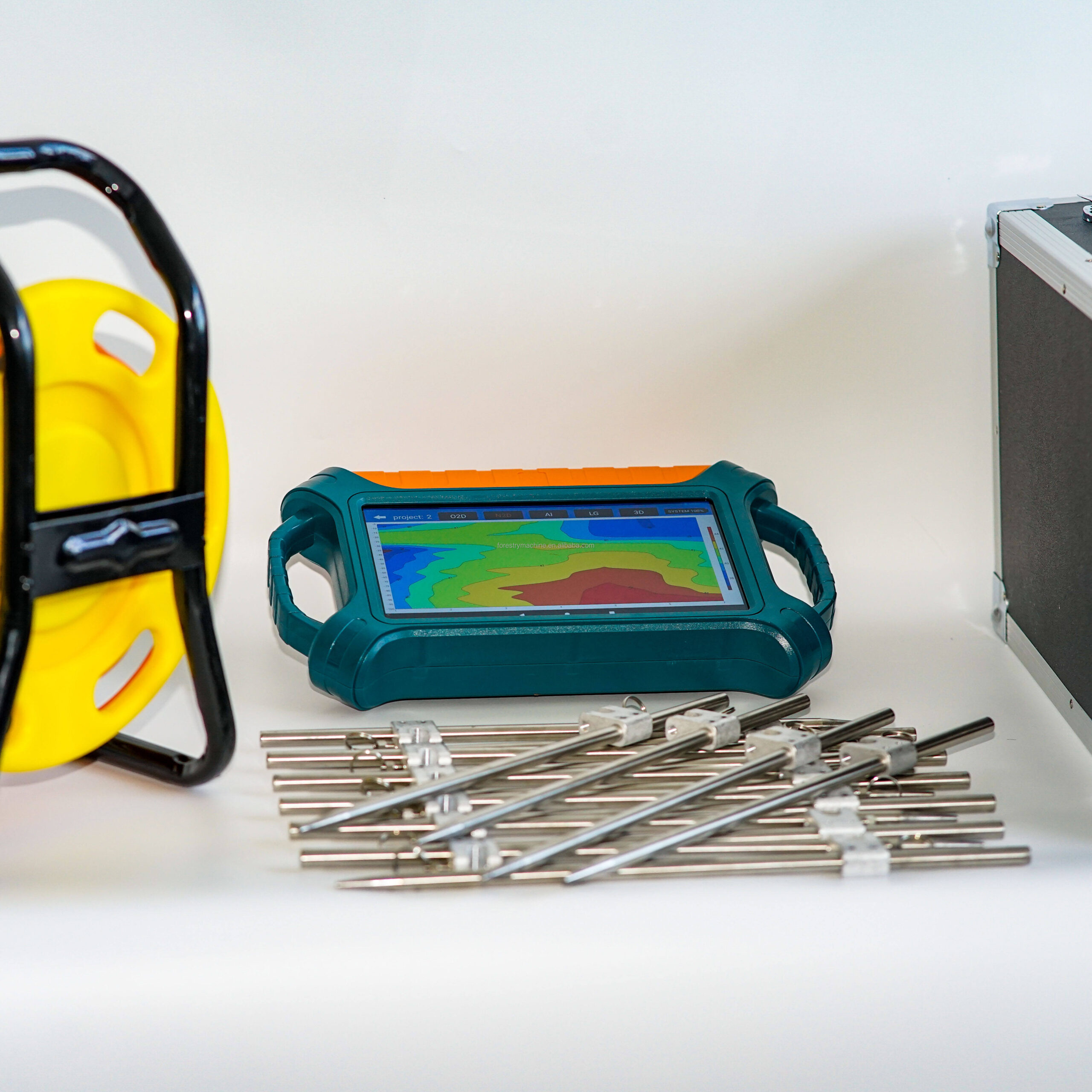

Our water detectors have different measurement methods, cable measurement and wireless probe measurement. The pull-wire measurement method can be adapted to the large area of the site for measurement. It is necessary to insert 16 electrode plates into the ground for measurement to detect the height difference of the underground resistivity to reflect the change of the water level.
is the first single man operated, unattended intelligent geophysical exploration instrument developed by our company and the
Institute of hydrology and geological exploration of Guilin. A single section can be measured at one time. It uses the MT of
electrical prospecting and combines the advantages of the frequency sounding method and the AMT method.
Our water detectors have different measurement methods, cable measurement and wireless probe measurement. The pull-wire measurement method can be adapted to the large area of the site for measurement. It is necessary to insert 16 electrode plates into the ground for measurement to detect the height difference of the underground resistivity to reflect the change of the water level.
|
parameter
|
ADMT-300SX-16D
|
ADMT-500SX-16D
|
|
Maximum depth (m)
|
0-300m
|
0-500m
|
|
Optional depth(m)
|
100m/200m/300m
|
100m/200m/300m/400m/500
|
|
Connection method
|
Serial port, Wifi, Bluetooth 4.0, USB (optional 4G communication)
|
|
|
Display screen
|
10-inch IPS wide-angle 178° visible touch screen
|
|
|
operating system
|
Android 6.0.1
|
|
|
CPU
|
ARM Cortex-A7(AD24 bit 1Msps)
|
|
|
The main function
|
Optional depth, real-time 2D/3D drawing, removable battery
|
|
|
Measurement mode
|
MN/TT
|
|
|
Measuring range
|
±5V
|
|
|
Frequency range (HZ)
|
1-8K
|
|
|
Frequency selective filtering
|
Preset frequency selection and intelligent frequency selection, analog + data filtering 1-16 times superposition optional
|
|
|
Resolution
|
0.1mV±5%
|
|
|
Sampling time (seconds)
|
40-280
|
|
|
Battery power consumption
|
600mA/H
|
|
|
mainframe weight
|
2.6kg
|
|

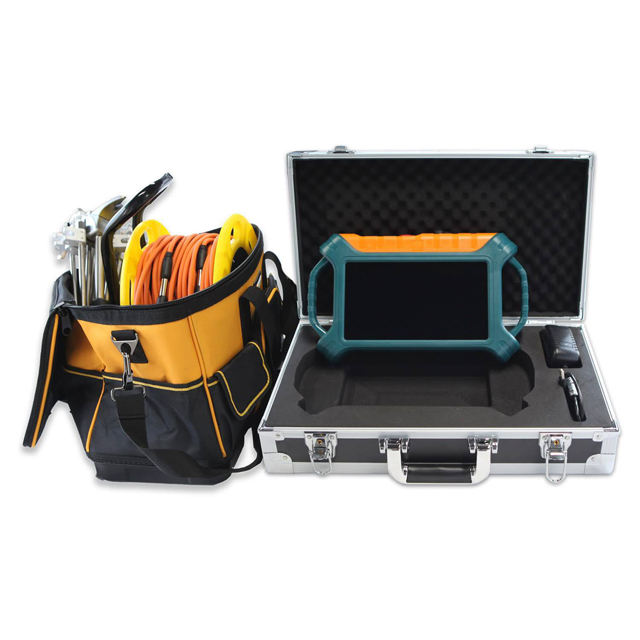

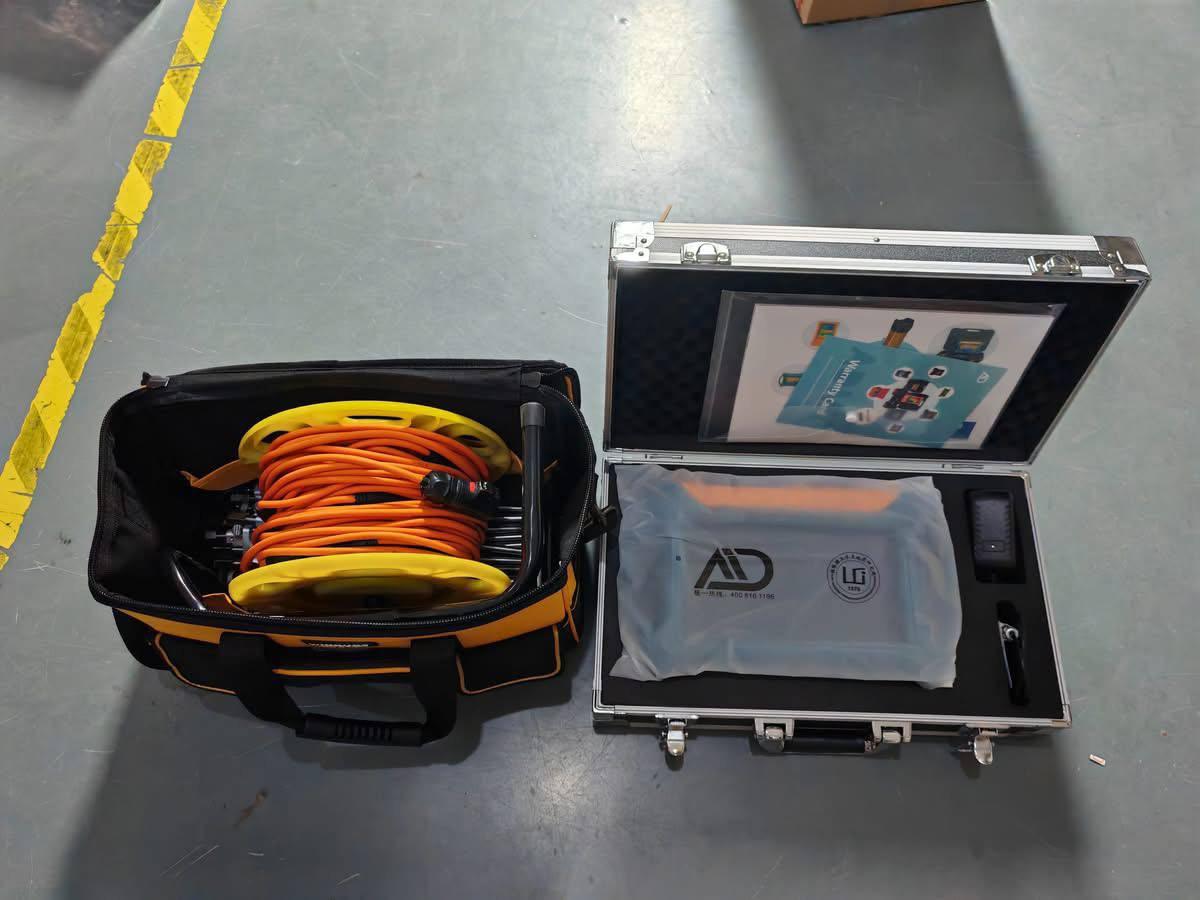

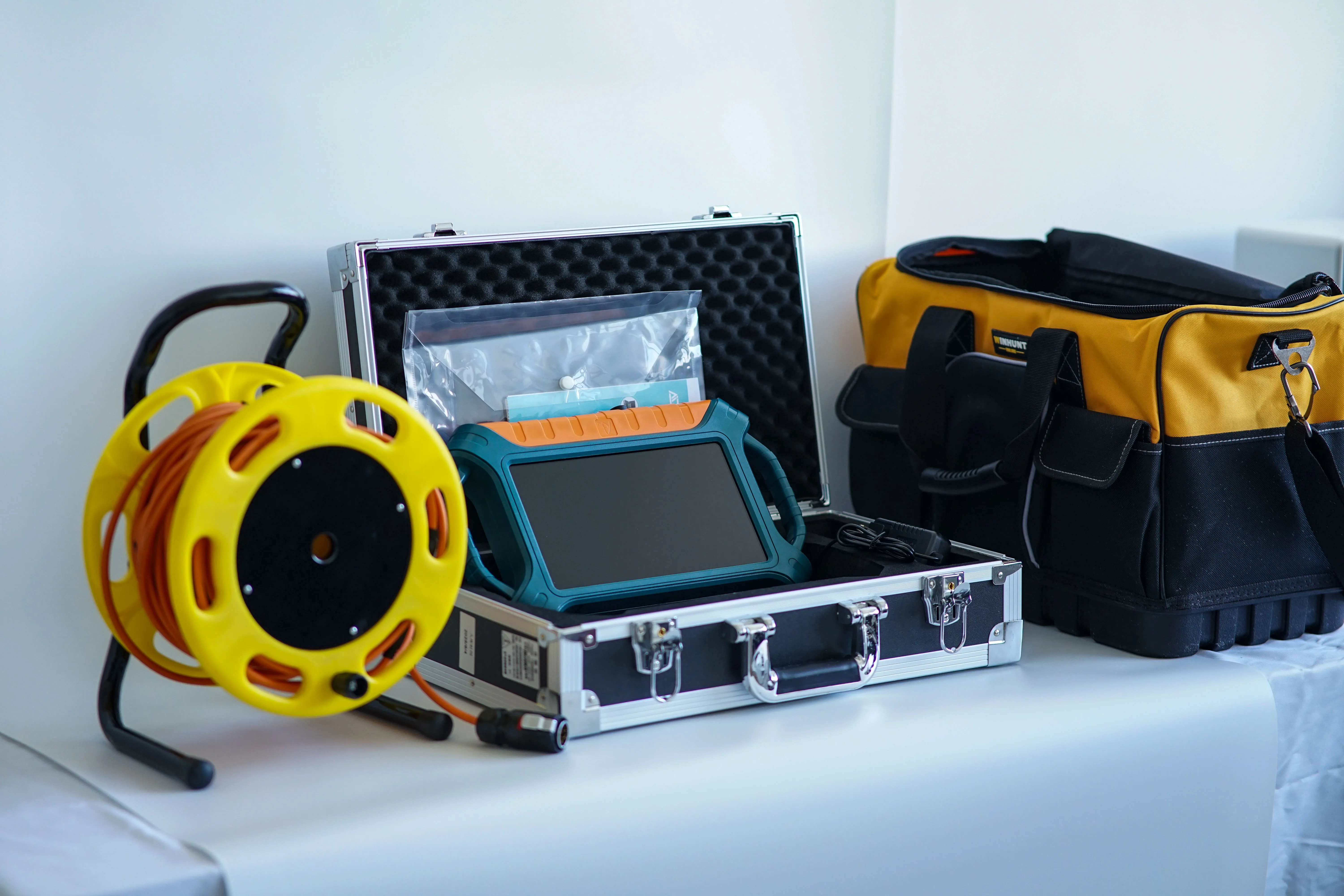

Packing & Delivery
