1000m Down The Hole Camera Downhole Video Camera Deep Well Logging Camera System

This Water Well Downhole/ Borehole Camera is a great combination of modern technology and affordable price. It is well suited for inspecting various reservoirs, wells, borehole, downhole, shafts, pipes, tanks and other objects from the top down. It is equipped with a Ø75mm down view camera head enabling operators to receive a complete detailed image of the inspection area.  The Ø75mm down view camera head is equipped with CCD sensors and 9pcs high-output long-lasting LED light allowing for capturing bright and detailed images even in poor lighting environments.  The downhole camera heads are IP68 waterproof and withstand pressure up to 200 bar in water.

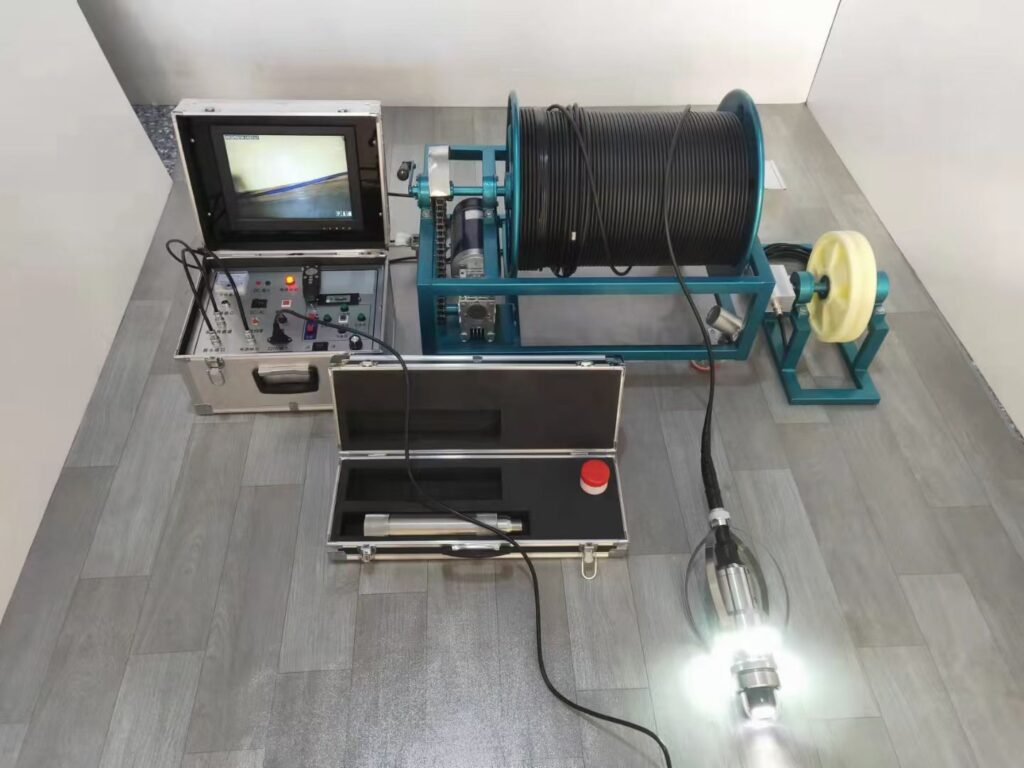

The Downhole Camera features a compact control unit with a high-resolution 12” LCD display. The inspection process can be viewed on the display right on site, captured as video files.  All data can be saved on 16G SD card(Maximum 32G). The user-friendly interface offers various operation features.

The system works with Ø7.2mm modified polypropylene cables(which can bear 220KG) of different lengths (from 100m to 2000m) that can be securely coiled on an electric operated reel. The motorized winch allowing for winding the cable up and down with different speeds(when 220V power supply). Besides inspection findings, users can view depth, the depth accuracy reach to 0.05m and it supports depth reset.

The down hole camera works on a conventional AC220V power supply, or it can work with AC110V power supply by a AC110V to AC220V converter.
